Proportional Solenoid Valves

Proportional solenoid valves provide variable flow control for a wide range of applications.

The Valves Control Flow based on Applied Voltage

Solenoid Solutions' Wattmizer Proportional Valves are designed to regulate the flow of air and gas varying the output flow based on the applied current input to the valve. However, these valves do not operate as shut-off valves. The valves are 2 way, normally closed and are available with a 9 watt coil featuring a combination of 12 or 24 VDC voltages with 1/16" or 3/32" orifices. These valves provide an adjustable programmable controller, ideal for mixing gases. Every valve is fine tuned to each application, and they are 100% laboratory tested. These proportional valves are economically priced, and available in a wide range of materials, components and configurations.

See how Proportional Valves are used throughout industry.

Features

  • For Air or Gas Media
  • Miniature Size
  • Two Orifice Sizes: 1/16" or 3/32"
  • Two Voltages: 12 VDC & 24 VDC
  • Adjustable Program Controller
  • 100% Lab Tested
  • Fast Response
  • Energy Efficient
  • Long Life... In excess of 10 Million Cycles
  • Economically Priced
  • Not Bubble Tight

Applications

  • Precise Pressure Control
  • Analytical Instruments
  • Dental Instruments
  • Blood Pressure Monitors
  • Medical Equipment
  • Plasma Cutters
  • Many Other Applications
Valve Type
 2-Way Normally Closed (proportional)
Media
 Air & Inert Gases
Operating Pressure
 See charts
Voltages
 12 or 24 VDC
Orifice Diameters
 1/16" or 3/32"
Coil Type
 9 Watt- Class 'F' 155°C with 1/4" Spades
Body
 Stainless Steel
Port Size
 1/8" NPT
Seal Material
 Buna N
Temperature Range
 Normal 40°F to 70°F (contact factory for settings outside this range)
Maximum Hysteresis*
 15%
* Hysteresis - If an alternating magnetic field is applied to the material, its magnetization will trace out a loop called a hysteresis loop. The lack of retraceability of the magnetization curve is the property called hysteresis and it is related to the existence of magnetic domains in the material.

Two-Way Normally Closed

Two way normally valve
Two way normally diagram
Two way normally schematic

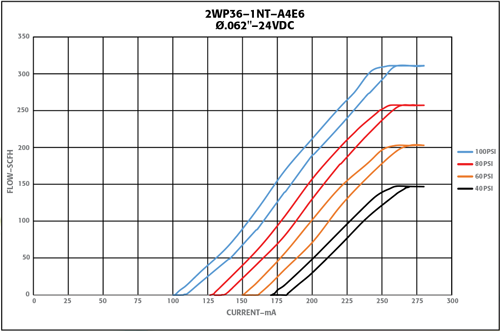

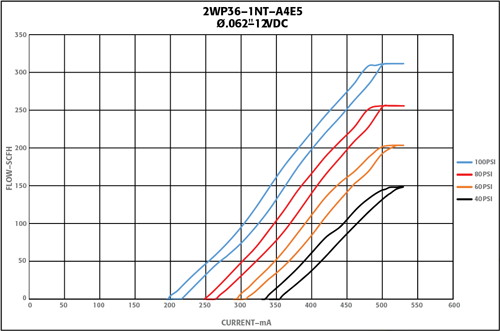

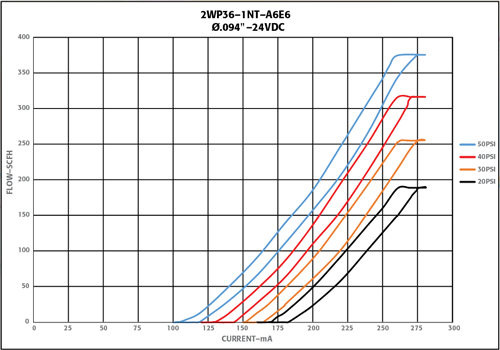

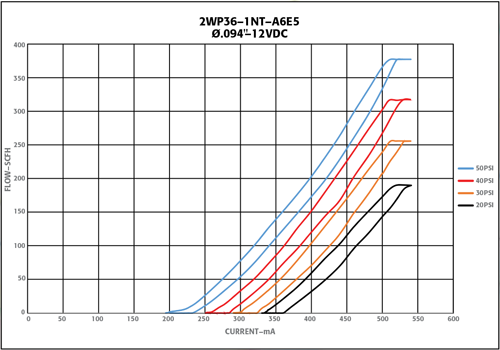

Flow Curves

Flow Curve
Flow Curve
Flow Curve
Flow Curve

Downloads

Proportional Valves Brochure

Proportional Valves Brochure

Provides charts, graphs and other information about Solenoid Solutions' proportional valves.

Read More
Valves and Manifolds Catalog

Valves and Manifolds Catalog

Provides a complete guide to all of Solenoid Solutions' products and services.

Read More

Unsure what type of solenoid valve you need?

Contact us or call (888) 825-8405. Our expert team can help configure the best solution. Be sure to ask for your free quote!.

Contact Us!

Flow Diagrams

Review all the possible 2-Way, 3-Way, Normally Open and Normally Closed valve configurations.

CV Calculator

Based on the media passing through the valve, understand and calculate the Flow Coefficient or CV and the Differential Pressure (delta P) between the inlet and outlet of a valve.

Valve Considerations

Many applications have critical design factors to consider when developing a custom valve solution. Whether its limited space, a corrosive fluid, power constraints or high vibration, we help you design the right solution.

Customer Survey

Please take a moment and tell us how we're doing. It's important in our ongoing continuous improvement process. Thank you in advance!
