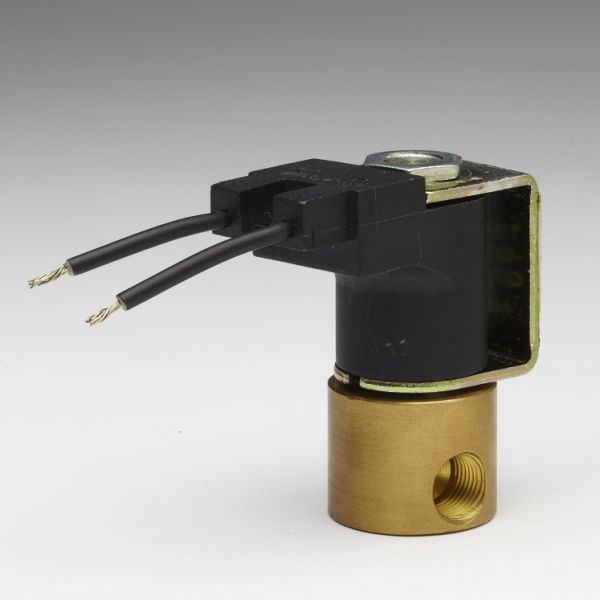

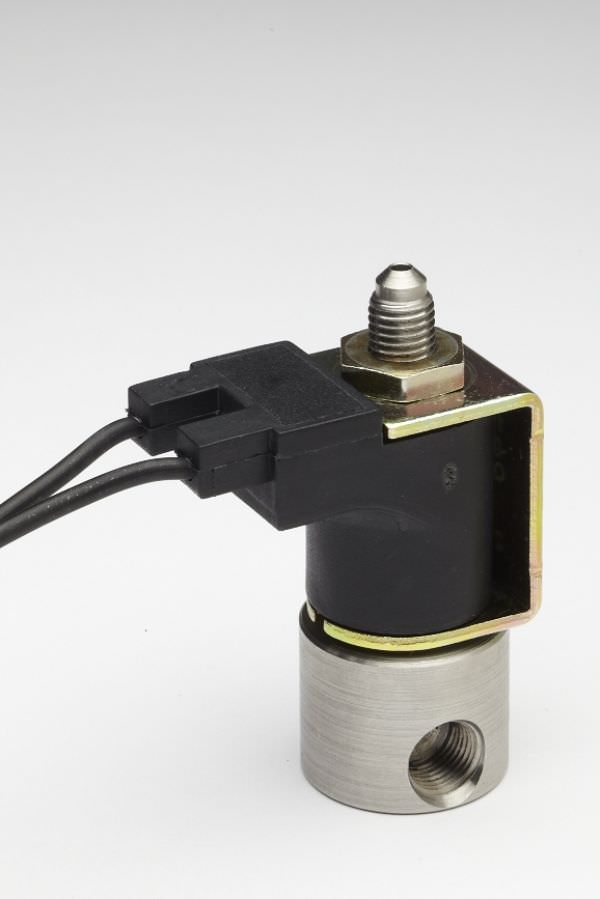

Wattmizer Low-Power Solenoid Valves

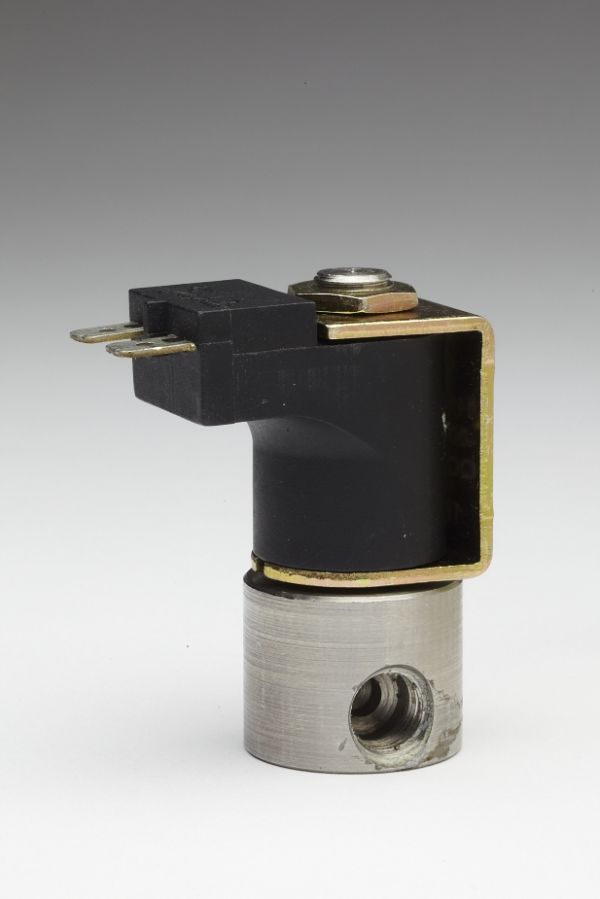

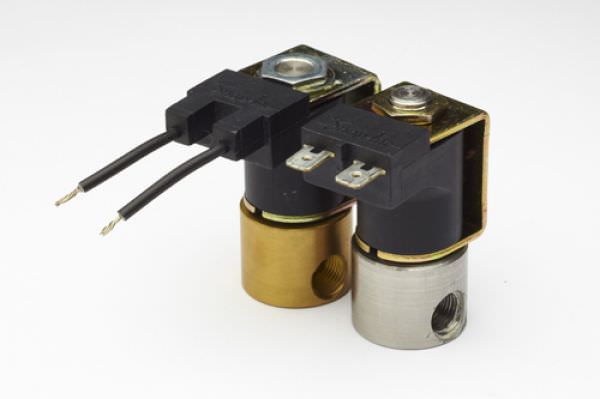

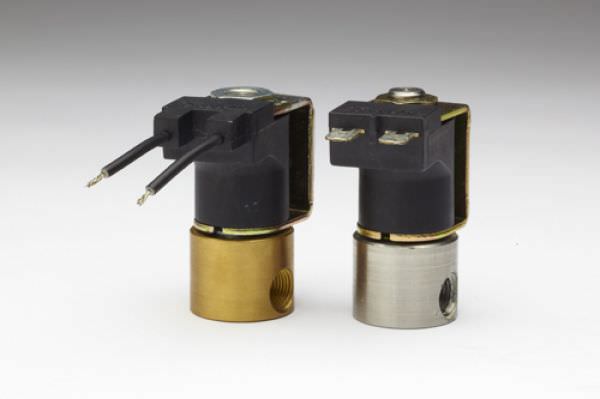

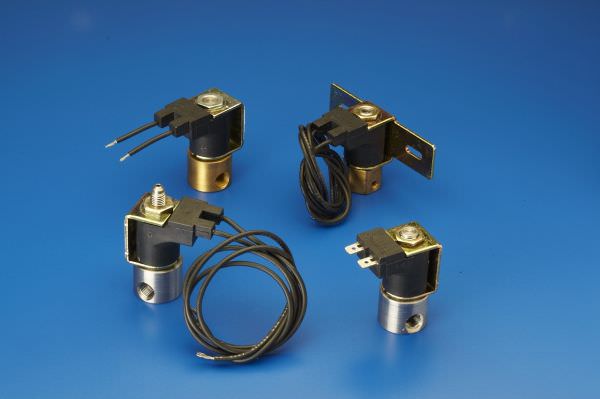

Huge Range of Miniature ValvesWattmizer is a highly efficient, miniature electric 12v Solenoid valve designed for use in compact areas requiring low power draw. These 2-way and 3-way solenoid valves are offered in a range of .65 to 9 watts of continuous power, with operating pressure capacities of up to 1200 psi (85 bar). These valves come standard with brass or stainless steel bodies and stainless steel internal parts, making them compatible with most fluids and inert gases.
Because their energy efficient, low watt coils draw less current, they can operate as 12AC or 12VDC Solenoid valves while providing wide pressure and flow ratings. Plus they deliver long duty, lasting in excess of 10 million cycles. Wattmizer valves are most commonly used in medical devices, beverage systems and gas analysis systems. Among many other applications, they are suitable for use as 12v air or water Solenoid valves.
New Cryogenic Series of Wattmizer Valves feature special seals capable of handling media down to 300 degrees F.
Other features of Wattmizer Miniature Solenoid Valves include:
Body |
1" Stainless Steel or Brass (standard) |
Maximum Operating Pressure Differential |
up to 1200psi (85 bar) |
Orifice Diameters |
.025" to 1/8" (body) .025" to 5/64" (stop) |
Response Time |
6 to 10 milliseconds |
Coil Type |
Continuous Rating 0.65 watt through 9 watt-Class "F" (155°C) standard 0.65 watt through 9 watt-Class "B" (130°C) optional |
Standard Voltages |
24V/50-60 Hz, 120V/50-60 Hz, 240V/50-60 Hz, 6,12, 24 VDC (Other voltages and wattages available upon request) |
Power Consumption |
0.65 to 9 watt continuous duty |
Vacuum |
5 microns |
Port Size |
#10-32 UNF-2B, 1/8" NPT |
Housing |
Strap housing (standard) Grommet Housing (optional) |
Seal Material |
Buna N, Viton, EPDM standard, others optional |
Leakage |
Bubble tight (1 x 10-5 cc/sec.) |
Media Temperature Limitations |
Minimum: -40°F (-40°C) Maximum: +180°F (+82°C) |
Weight |
2 3/4 to 3 1/4 ounces |
Lead Wire |
20 AWG, 18 inches (standard) |
At Solenoid Solutions, our specialties are quality customization and customer service. We can install an endless array of firings, controls and connections to your valve for true "Plug and Play" compatibility. We can complete your order with any add-on you need, saving you time, money, and potentially costly repairs due to improperly installed fittings.

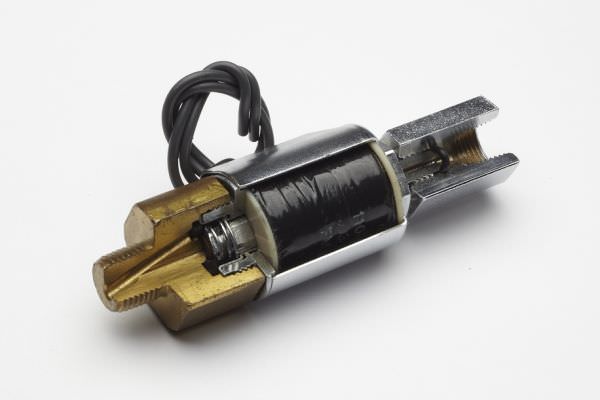

Overview of Solenoid valve operations
| Maximum Operating Pressure Differential (PSI) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2-Way AC Pressure Ratings | Orifice Diameter | Cv Factor | Nominal Wattage | ||||||||
| De-energized | Energized | Orif. No. | Body | Stop | Body | Stop | .65 Watts (A)* | 1.5 Watts (B)† | 3.0 Watts (C) | 6.0 Watts (D)‡ | 9.0 Watts (E) ♠ |
| 2-Way Normally Closed | 0 | .025 (.65) | .015 (.011) | 450 (31.6) | 750 (51.7) | 1200 (82.8) | 1200 (82.8) | 1200 (82.8) | |||
 |
 |
1 | 1/32 (.80) | .020 (.015) | 350 (24.1) | 625 (43.1) | 900 (62.0) | 1000 (69.0) | 1200 (82.8) | ||
| 2 | 3/64 (1.2) | .030 (.023) | 225 (15.5) | 475 (32.8) | 725 (50.0) | 800 (55.2) | 900 (62.0) | ||||
| 3 | .055 (1.4) | .050 (.038) | 110 (7.6) | 275 (18.9) | 500 (34.5) | 650 (44.8) | 725 (50.0) | ||||
| 4 | 1/16 (1.6) | .080 (.062) | 75 (5.2) | 200 (13.8) | 325 (24.4) | 500 (34.5) | 550 (37.9) | ||||
| 5 | 5/64 (2.0) | .120 (.092) | 110 (7.6) | 200 (13.8) | 350 (24.1) | 400 (27.6) | |||||
| 6 | 3/32 (2.4) | .170 (.131) | 125 (8.6) | 225 (15.5) | 250 (17.2) | ||||||
| 7 | 7/64 (2.8) | .250 (.192) | 75 (5.2) | 125 (8.6) | 175 (12.1) | ||||||
| 8 | 1/8" (3.2) | .280 (.215) | 35 (2.4) | 75 (5.2) | 100 (6.9) | ||||||
| 2-Way DC Pressure Ratings | |||||||||||
| 2-Way Normally Closed | 0 | .025 (.65) | .015 (.011) | 150 (10.3) | 350 (24.1) | 750 (51.7) | 1000 (69.0) | 1200 (82.8) | |||
|
|
1 | 1/32 (.80) | .020 (.015) | 110 (7.6) | 200 (13.8) | 500 (34.5) | 900 (62.0) | 1000 (69.0) | ||
| 2 | 3/64 (1.2) | .030 (.023) | 40 (2.8) | 125 (8.6) | 250 (17.2) | 500 (34.5) | 575 (39.7) | ||||
| 3 | .055 (1.4) | .050 (.038) | 15 (1.0) | 50 (3.4) | 125 (8.6) | 255 (17.6) | 300 (20.7) | ||||
| 4 | 1/16 (1.6) | .080 (.062) | 10* (.7) | 35 (2.4) | 90 (6.2 | 175 (12.1) | 225 (15.5) | ||||
| 5 | 5/64 (2.0) | .120 (.092) | 15 (1.0) | 45 (3.1) | 100 (6.9) | 125 (8.6) | |||||
| 6 | 3/32 (2.4) | .170 (.131) | 30 (2.1) | 60 (4.1) | 100 (6.9) | ||||||
| 7 | 7/64 (2.8) | .250 (.192) | 20 (1.4) | 40 (2.8) | 60 (4.1) | ||||||
| 8 | 1/8" (3.2) | .280 (.215) | 10 (.7)♦ | 35 (2.4) | 50 (3.5) | ||||||
| 2-Way Normally Open | 0 | .025 (.65) | .015 (.011) | 100 (6.9) | 300 (20.7) | 625 (43.1) | 850 (58.6) | 1000 (69.0) | |||
 |
 |
1 | 1/32 (.80) | .020 (.015) | 75 (5.2) | 175 (12.1) | 425 (29.3) | 750 (51.7) | 850 (58.6) | ||
| 2 | 3/64 (1.2) | .030 (.023) | 30 (2.1) | 100 (6.9) | 200 (13.8) | 425 (29.3) | 475 (32.8) | ||||
| 3 | .055 (1.4) | .050 (.038) | 40 (2.8) | 100 (6.9) | 190 (13.1) | 250 (17.2) | |||||
| 4 | 1/16 (1.6) | .080 (.062) | 30 (2.1) | 75 (5.2) | 150 (10.3) | 190 (13.1) | |||||
| 5 | 5/64 (2.0) | .120 (.092) | 10 (.7)♦ | 35 (2.4) | 85 (5.9) | 100 (6.9) | |||||
| 3-Way DC Pressure Ratings | |||||||||||
| 3-Way Normally Closed Free Vent and Line Connection |
0 | .025 (.65) | .025 (.65) | .015 (.011) | .015 (.011) | 100 (6.9) | 180 (12.4) | 350 (24.1) | 450 (31.6) | 550 (37.9) | |
 |
 |
1 | 1/32 (.80) | 1/32 (.80) | .020 (.015) | .020 (.015) | 65 (4.5) | 115 (7.9) | 250 (17.2) | 300 (20.7) | 400 (27.6) |
| 2 | 3/64 (1.2) | 3/64 (1.2) | .030 (.023) | .030 (.023) | 10 (.7) | 70 (4.8) | 175 (12.1) | 250 (17.2) | 300 (20.7) | ||
| 3 | .055 (1.4) | .055 (1.4) | .050 (.038) | .050 (.038) | 20 (1.4) | 100 (6.9) | 160 (11.0) | 190 (13.1) | |||
| 4 | 1/16 (1.6) | 1/16 (1.6) | .080 (.062) | .080 (.062) | 10 (.7)♦ | 75 (5.2) | 125 (8.6) | 175 (12.1) | |||
| 5 | 5/64 (2.0) | 5/64 (2.0) | .120 (.092) | .120 (.092) | 30 (2.1) | 65 (4.5) | 90 (6.2) | ||||
| 6 | 3/32 (2.4) | 5/64 (2.0) | .170 (.131) | .120 (.131) | 15 (1.0) | 40 (2.8) | 60 (4.1) | ||||
| 8 | 1/8 (3.2) | 5/64 (2.0) | .280 (.215) | .120 (.092) | 15 (1.0) | 25 (1.7) | |||||
| 3-Way Normally Open | 0 | .025 (.65) | .025 (.65) | .015 (.011) | .015 (.011) | 100 (6.9) | 175 (12.1) | 200 (13.8) | 300 (20.7) | 350 (24.1) | |
 |
 |
1 | 1/32 (.80) | 1/32 (.80) | .020 (.015) | .020 (.015) | 50 (3.4) | 100 (6.9) | 150 (10.3) | 200 (13.8) | 250 (17.2) |
| 2 | 3/64 (1.2) | 3/64 (1.2) | .030 (.023) | .030 (.023) | 15 (1.0) | 60 (4.1) | 125 (8.6) | 175 (12.1) | 200 (13.8) | ||
| 3 | .055 (1.4) | .055 (1.4) | .050 (.038) | .050 (.038) | 55 (3.8) | 125 (8.6) | 150 (10.3) | ||||
| 4 | 1/16 (1.6) | 1/16 (1.6) | .080 (.062) | .080 (.062) | 20 (1.4) | 90 (6.2) | 100 (6.9) | ||||
| 5 | 5/64 (2.0) | 5/64 (2.0) | .120 (.092) | .120 (.092) | 45 (3.1) | 50 (3.4) | |||||
| 6 | 3/32 (2.4) | 5/64 (2.0) | .170 (.131) | .120 (.092) | 20 (1.4) | 40 (2.8) | |||||
| 8 | 1/8 (3.2) | 5/64 (2.0) | .280 (.215) | .120 (.092) | 15 (1.0) | ||||||
| 3-Way Directional Control | 0 | .025 (.65) | .025 (.65) | .015 (.011) | .015 (.011) | 75 (5.2) | 150 (10.3) | 175 (12.1) | 255 (17.6) | 350 (24.1) | |
 |
 |
1 | 1/32 (.80) | 1/32 (.80) | .020 (.015) | .020 (.015) | 40 (2.8) | 90 (6.2) | 125 (8.6) | 200 (13.8) | 250 (17.2) |
| 2 | 3/64 (1.2) | 3/64 (1.2) | .030 (.023) | .030 (.023) | 15 (1.0) | 55 (3.8) | 100 (6.9) | 175 (12.1) | 200 (13.8) | ||
| 3 | .055 (1.4) | .055 (1.4) | .050 (.038) | .050 (.038) | 45 (3.1) | 125 (8.6) | 150 (10.3) | ||||
| 4 | 1/16 (1.6) | 1/16 (1.6) | .080 (.062) | .080 (.062) | 15 (1.0) | 90 (6.2) | 100 (6.9) | ||||
| 5 | 5/64 (2.0) | 5/64 (2.0) | .120 (.092) | .120 (.092) | 45 (3.1) | 50 (3.4) | |||||
| 6 | 3/32 (2.4) | 5/64 (2.0) | .170 (.131) | .120 (.092) | 20 (1.4) | 40 (2.8) | |||||
| 8 | 1/8 (3.2) | 5/64 (2.0) | .280 (.215) | .120 (.092) | 15 (1.0) | ||||||
| 3-Way Multi-Purpose | 0 | .025 (.65) | .025 (.65) | .015 (.011) | .015 (.011) | 65 (4.5) | 125 (8.6) | 150 (10.3) | 200 (13.8) | 300 (20.7) | |
 |
 |
1 | 1/32 (.80) | 1/32 (.80) | .020 (.015) | .020 (.015) | 30 (2.1) | 75 (5.2) | 100 (6.9) | 175 (12.1) | 200 (13.8) |
| 2 | 3/64 (1.2) | 3/64 (1.2) | .030 (.023) | .030 (.023) | 10 (.7) | 45 (3.1) | 80 (5.5) | 150 (10.3) | 175 (12.1) | ||
| 3 | .055 (1.4) | .055 (1.4) | .050 (.038) | .050 (.038) | 35 (2.4) | 80 (5.5) | 100 (6.9) | ||||
| 4 | 1/16 (1.6) | 1/16 (1.6) | .080 (.062) | .080 (.062) | 10 (.7)♦ | 65 (4.5) | 75 (5.2) | ||||
| 5 | 5/64 (2.0) | 5/64 (2.0) | .120 (.092) | .120 (.092) | 25 (1.7) | 35 (2.4) | |||||
| 6 | 3/32 (2.4) | 5/64 (2.0) | .170 (.131) | .120 (.092) | 15 (1.0) | 25 (1.7) | |||||
| 8 | 1/8 (3.2) | 5/64 (2.0) | .280 (.215) | .120 (.092) | 10 (.7)♦ | ||||||
Notes: * Maximum available voltage: 80 volts AC or DC.
Values in parenthesis are metric.
Example: inch (millimeter) – psi (bar)
† Maximum available voltage: 120 volts AC or DC.
‡ Maximum available duty rating for Class B 266˚ F (130˚ C) DC coils.
♠ Maximum continuous duty rating for Class B 266˚ F (130˚ C) full wave rectified AC coils and Class F 311˚ F (155˚ C) DC coils.
♦ Do not use for vacuum applications in excess of rated pressure.
Note: 240/60 VAC coils available in 6 watt configurations only
| Valve Model Number Matrix | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 WAYS |
W1 FAMILY |
3 FUNCTION |
6 COIL TYPE |
1 PORT SIZE |
N PORT TYPE |
B BODY MATERIAL |
A SEAL MATERIALS |
4 ORIFICE SIZE |
D WATTAGE |
5 VOLTAGE |
U OPTIONS |
| 2 2-Way |
W1 Wattmizer |
3 2-Way Normally Closed 3-Way Normally Closed Line Connect |
Molded Class “F” W with 18” leads |
1 1/8” |
N NPT Female |
B Brass |
A Buna |
0 .025 (0.65) |
A 0.65 |
1 120/60 |

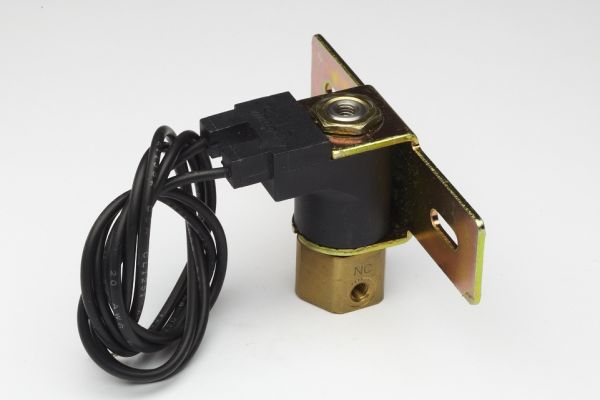

B Mounting Brackets |
| 3 3-Way |
4 Normally Open |
6 with 1/4” Spades |
5 #10-32 Manifold Mount |
D Defined Elsewhere |
R Stainless Steel |
E EPDM |
1 1/32" (0.80) |
B 1.5 |
2 24/60 |
P Exhaust Port Adapter |
|
| 5 Directional Control |
Non-Molded Class “B” 0 with 18” Leads |
7 #10-32* |
O Without Body |
V Viton |
2 3/64" (1.2) |
C 3.0 |
3 240/60 (6 & 9 watt only) |
U UL Approval |
|||
| 6 Normally Closed Free Venting |
Molded Class “B” 1 with 18” Leads |
9 5/16"-24 Manifold Mount |
N Neoprene |
3 3/64" (1.2) |
D 6.0 |
4 |
C CSA Approval |
||||
| 7 Universal |
Q Defined Elsewhere |
4 1/16" (1.6) |
E 9.0 |
5 12 VDC |
L CUL Approval |
||||||
| 5 5/64" (2.0) |
6 24 VDC |
S UL/CSA Approval |
|||||||||
| 6 3/32" (2.4) |
G CSA Approval Gas Valves Natural Gas & Propane |
||||||||||
| 7 7/64" (2.8) |
|||||||||||
| 8 1/8" (3.2) |
|||||||||||

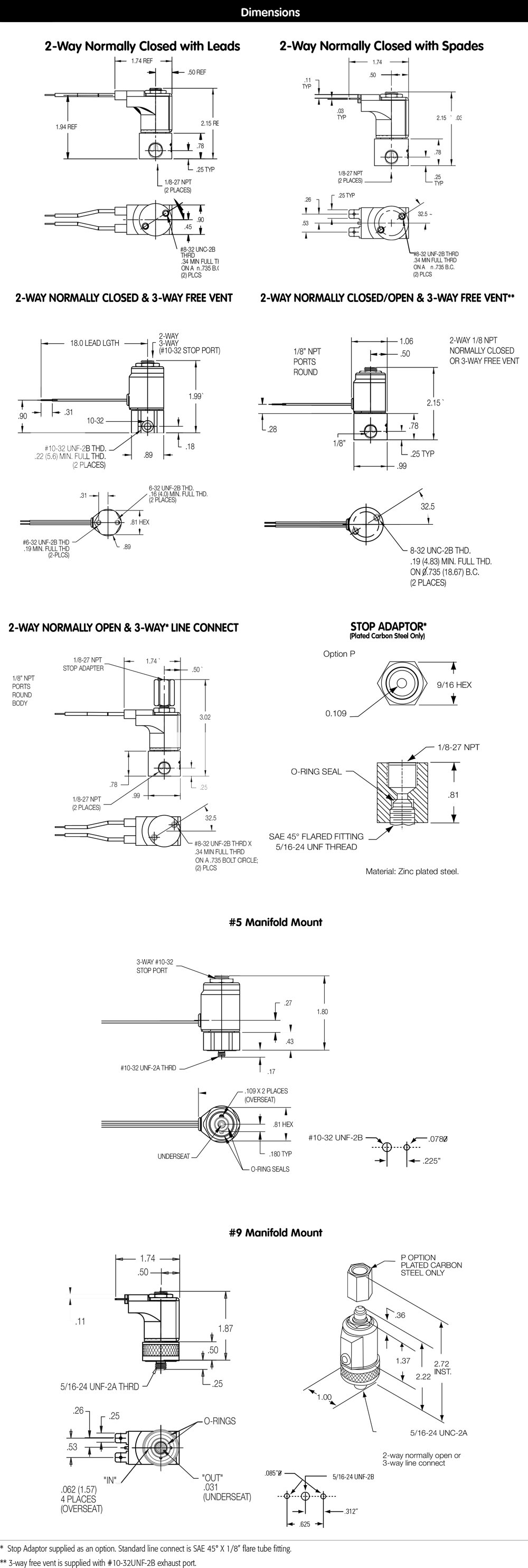

Looking for a BIG solution in a small package?
Our SuperWattmizer solenoid valve delivers! With a #10-32 port size of just 1/4" NPT, it features a larger orifice range, from .025" up to .219". It's the ultimate small-space solution. Count on continuous operation from your SuperWattmizer Solenoid valve. Thanks to its high rating, you can expect up to 60 million or more cycles of performance. It also boasts a rapid response time of 6 to 9 milliseconds.The Super Wattmizer Solenoid Valve is very powerful and compact, operating at up to 35% higher capacity at very low wattage. Now you can draw less current thanks to larger coils that range from 0.65 to 9 watts.These valves also operate better in higher temperature situations due to a better heat-dispersing coil.
