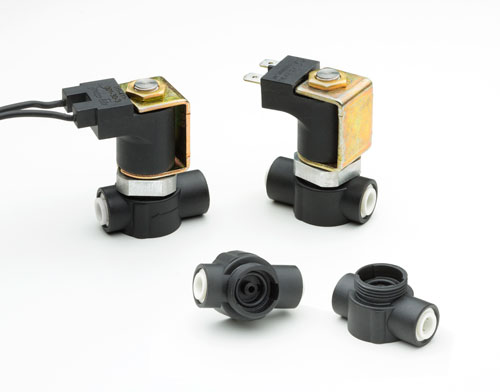

Wattmizer with Plastic Valve Bodies

Offer significant value over metal-based bodies

For many applications, plastic valve bodies offer significant value over metal-based bodies. Designed specifically for Solenoid Solutions’ high-performance Wattimizer series solenoid valves, these plastic bodies are lightweight, corrosive resistant, offer a lower profile and use convenient push-to-connect fittings… all at a lower cost. These plastic bodies are CUL/CSA approved.

The valve bodies offer integral 1/4" OD tube "push-to-connect" port fittings and have a max psi rating of 150. These plastic bodies and manifolds are designed for medical, fluid power, automotive, gas, and more; and can be used in direct-acting and pilot applications.

The Wattmizer Series are highly efficient, miniature electric solenoid valves designed for use in compact areas requiring low power draw. These 2-Way and 3-Way solenoid valves are offered in a range of .65 to 9 Watts of continuous power, with operating pressure capacities of up to 150psi (85 bar).

Benefits of Plastic Valve Bodies

  • Lightweight Bodies
  • CUL Approved
  • Low Profile Design
  • Non-Corrosive Application
  • Easy to use Push Connect Fittings
  • NST Approved

Applications for Plastic Bodies

  • Medical Devices
  • Air & Fluid Applications
  • Pressures to 150psi
  • Gas & Air Operations

Note: Plastic valve bodies are limited to low-pressure applications up to 150 psi.

Valve Series Operation Body
Size
Port Sizes Orifice
Wattmizer 2-Way, 3-Way
Directional,
Axial Flow
1”
(25.4mm)
10-32 stop port
and 1/4”
body port
.025” to .125”
(body
.025” to .078”
(Stop)
Plastic Solenoid Valve Body

Unsure what type of solenoid valve you need?

Contact us or call (888) 825-8405. Our expert team can help configure the best solution. Be sure to ask for your free quote!.
