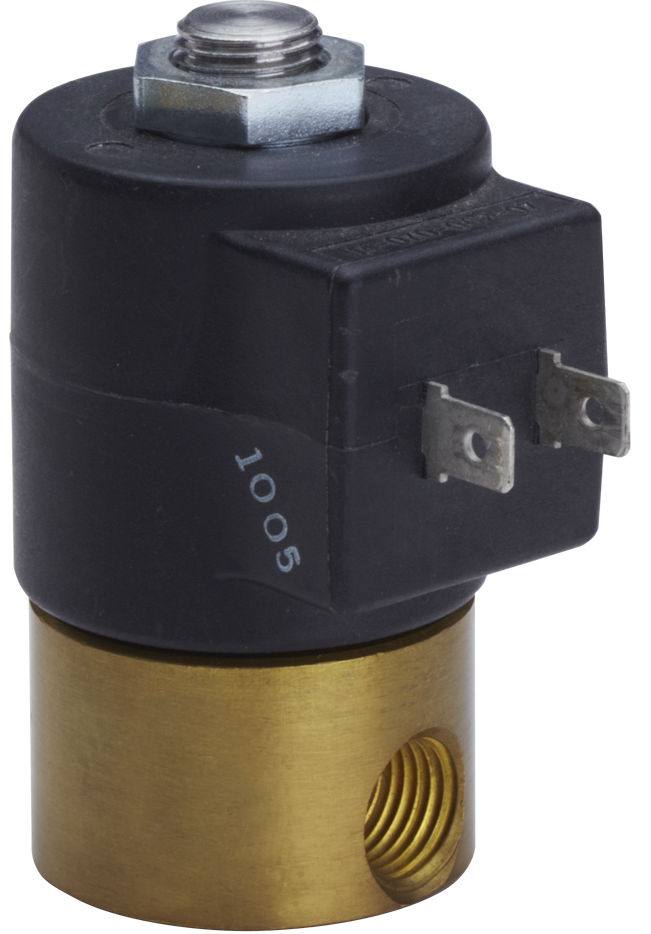

8 Series Valves

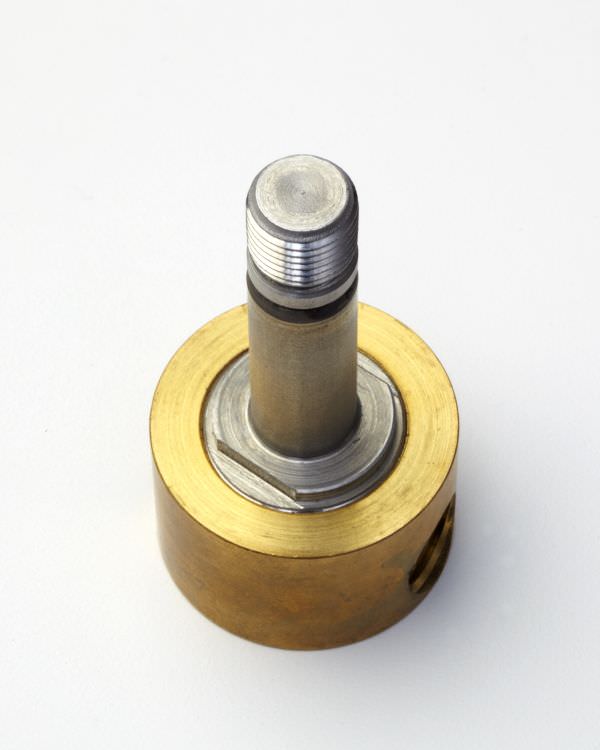

One Piece Machined Assembly

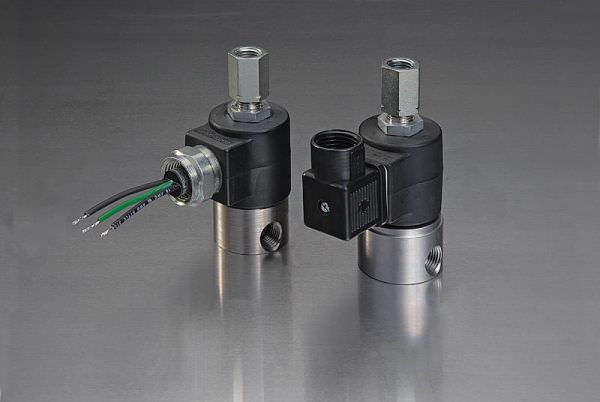

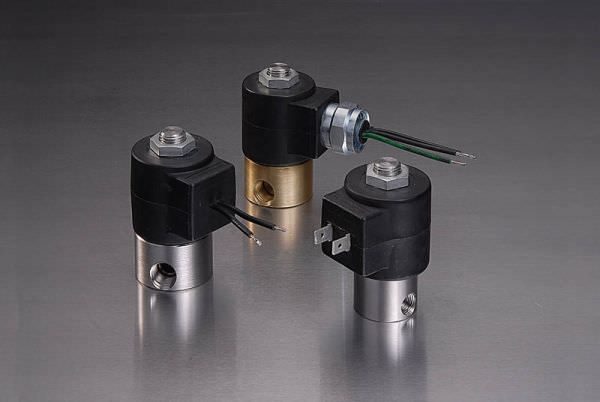

The 8 Series one-piece flange tube assembly eliminates one weld joint, increasing strength and reducing leakage potential. Its fully encapsulated overmold high-end coil construction and unique internal design provide improved magnetic circuitry for smooth operation. The rugged 8 Series direct acting solenoid valve line comes standard with a brass or stainless steel body, draws 11 watts of power and is available for AC and DC service.

These solenoid valves are used in automotive suspension systems, emissions monitoring and control equipment, truck fan clutch controls, dental/vision chairs, medical tables and beds, liquid recycling systems and HVAC applications.

Solenoid Solutions can also install an endless array of fittings, controls and connections to your valve, providing true "Plug and Play" solutions. We will complete the order with any add-on you need, saving you time, money, and possible costly repairs due to improperly installed fittings, etc.

Overview of Solenoid valve operations

• Maximum Operating Pressure Differential (PSI)
• Valve Model Number Matrix

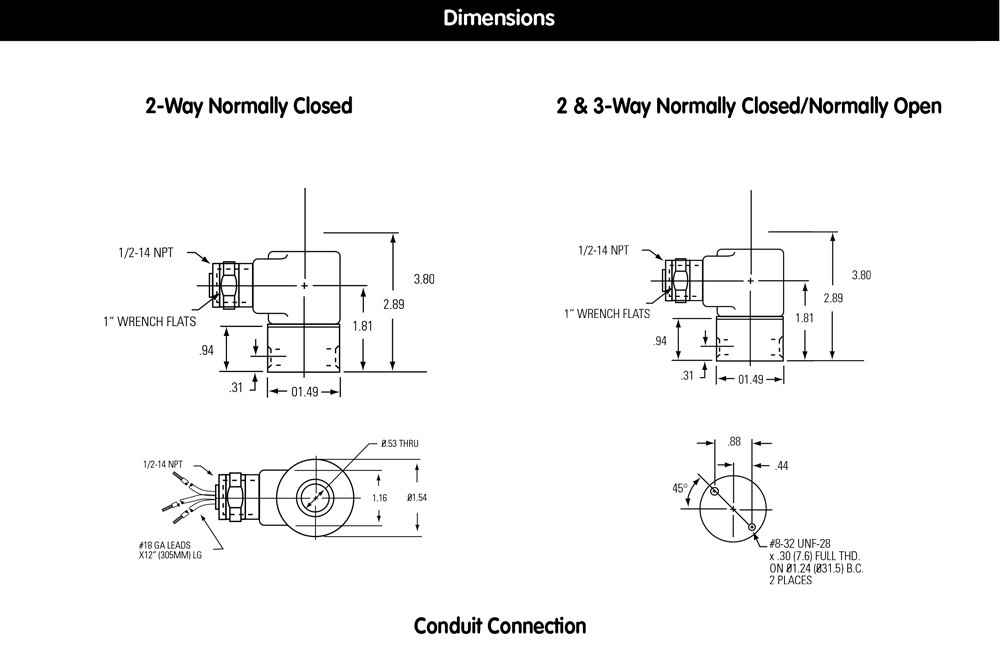

• Mounting Dimensions

Maximum Operating Pressure Differential (PSI)
2-Way Pressure Ratings			Orifice Diameter		Cv Factor		Maximum Operating Pressure Differential
De-energized	Energized	Orif. No.	Body	Stop	Body	Stop	AC	DC
2-Way Normally Closed		1	1/32 (0.8)		.024		1200 (82.75)	1100 (75.86)
		2	3/64 (1.2)		.062		1100 (75.86)	1000 (68.96)
		4	1/16 (1.6)		.095		1000 (68.10)	600 (41.38)
		5	5/64 (2.0)		.120		600 (41.38)	325 (22.41)
		6	3/32 (2.4)		.180		400 (27.59)	275 (18.97)
		8	1/8 (3.2)		.280		225 (15.52)	150 (10.34)
		9	5/32 (4.0)		.400		120 (8.28)	60 (4.14)
		A	3/16 (4.8)		.500		80 (5.51)	30 (2.07)
		C	1/4 (6.4)		.750		25 (1.73)	10 (0.70)
2-Way Normally Open		2	3/64 (1.2)		.062		500 (35.48)	500 (35.48)
		4	1/16 (1.6)		.095		300 (21.0)	300 (21.0)
		6	3/32 (2.4)		.180		150 (10.0)	150 (10.0)

3-Way Pressure Ratings			Orifice Diameter		Cv Factor		Maximum Operating Pressure Differential
De-energized	Energized	Orif. No.	Body	Stop	Body	Stop	AC/DC
3-Way Normally Closed		V	1/32 (0.8)	3/64 (1.2)	.024	.062	600 (41.38)
		2	3/64 (1.2)	3/64 (1.2)	.062	.062	275 (18.97)
		4	1/16 (1.6)	1/16 (1.6)	.095	.095	220 (15.17)
		6	3/32 (2.4)	3/32 (2.4)	.180	.180	130 (8.97)
		T	1/8 (3.2)	3/32 (2.4)	.280	.180	90 (6.21)
		9	5/32 (4.0)	3/32 (2.4)	.400	.180	40 (2.76)
		A	3/16 (4.8)	3/32 (2.4)	.500	.180	25 (1.73)
		C	1/4 (6.4)	3/32 (2.4)	.750	.180	10 (0.70)
		3-Way Normally Open		R	1/16 (1.6)	3/64 (1.2)	.095	.062	225 (15.52)
		4	1/16 (1.6)	1/16 (1.6)	.095	.095	150 (10.35)
		6	3/32 (2.4)	3/32 (2.4)	.180	.180	100 (6.90)
		T	1/8 (3.2)	3/32 (2.4)	.280	.180	50 (3.45)
		9	5/32 (4.0)	3/32 (2.4)	.400	.180	40 (2.76)
		A	3/16 (4.8)	3/32 (2.4)	.500	.180	20 (1.38)
		C	1/4 (6.4)	3/32 (2.4)	.750	.180	10 (0.70)
3-Way Directional Control		R	1/16 (1.6)	3/64 (1.2)	.095	.062	300 (20.70)
		4	1/16 (1.6)	1/16 (1.6)	.095	.095	250 (17.25)
		6	3/32 (2.4)	3/32 (2.4)	.180	.180	140 (9.66)
		T	1/8 (3.2)	3/32 (2.4)	.280	.180	120 (8.62)
		9	5/32 (4.0)	3/32 (2.4)	.400	.180	65 (4.48)
		A	3/16 (4.8)	3/32 (2.4)	.500	.180	25 (1.73)
3-Way Universal		V	1/32 (0.8)	3/64 (1.2)	.062	.062	350 (24.14)
		2	3/64 (1.2)	3/64 (1.2)	.062	.062	200 (13.80)
		4	1/16 (1.6)	1/16 (1.6)	.095	.095	175 (12.07)
		6	3/32 (2.4)	3/32 (2.4)	.180	.180	100 (6.90)
		T	1/8 (3.2)	3/32 (2.4)	.280	.180	50 (3.45)
		9	5/32 (4.0)	3/32 (2.4)	.400	.180	25 (1.73)

Values in parenthesis are metric. Example: inch (millimeter) – psi (bar)

Valve Model Number Matrix
2 WAYS	82 FAMILY	3 FUNCTION	7 COIL TYPE OVERMOLD	2 PORT SIZE	N PORT TYPE	T BODY MATERIALS	V SEAL MATERIALS	4 ORIFICE SIZE	F WATTAGE	1 VOLTAGE	OPTIONS
2 2-Way	82 1-1/2" body	3 2-Way Normally Closed	Class "F" A Conduit	1 1/8"	N NPT Female	B Brass	A Buna	1 1/32" (.80)	F 11.0	1 120/60	U UL Approval
3 3-Way		3-way Normally Closed Line Connect	B 1/4" Spades	2 1/4"	D Defined Elsewhere	T 303 Stainless Family 82 Only	E EPDM	2 3/64" (1.2)		2 24/60	C CSA Approval
		4 Normally Open	C 18" Leads	Q Defined Elsewhere		O Without Body	F FDA Buna	4 1/16" (1.6)		3 240/60	L CUL Approval
		5 Directional Control	7 DIN 43650				G FDA EPDM	5 5/64" (2.0)		4 6 VDC	S UL/CSA Approval
		6 Normally Closed Free Venting	H Hazardous Location				V Viton	6 3/32" (2.4)		5 12 VDC
		7 Universal						8 1/8" (3.2)		6 24 VDC
								9 5/32" (4.0)
								A 3/16" (4.8)
								C 1/4" (6.4)
								R 1/16" x 3/64" (1.6 x 1.2)
								T 1/8" x 3/32" (3.2 x 2.4)
								V 1/32" x 3/64" (.8 x 1.2)

Unsure what type of solenoid valve you need? Contact us or call (888) 825-8405. Our expert team can help configure the best solution. Be sure to ask for your free quote!.
