The 8 Series solenoid valves are heavy-duty, mid-sized, general purpose valves featuring high performance pressure and flow characteristics. These solenoid valves are commonly used in OEM pneumatic and hydraulic component assemblies.

Port Size
1/8" and 1/4" NPT Porting
Orifice Size
Body: 1/32" to 1/4"
Stop: 3/32" to 3/16"
Weight
approximately 1 lb., 7 oz.
Media Temperature Limitations
-40°F to 180°F
Operation
2 way and 3 way

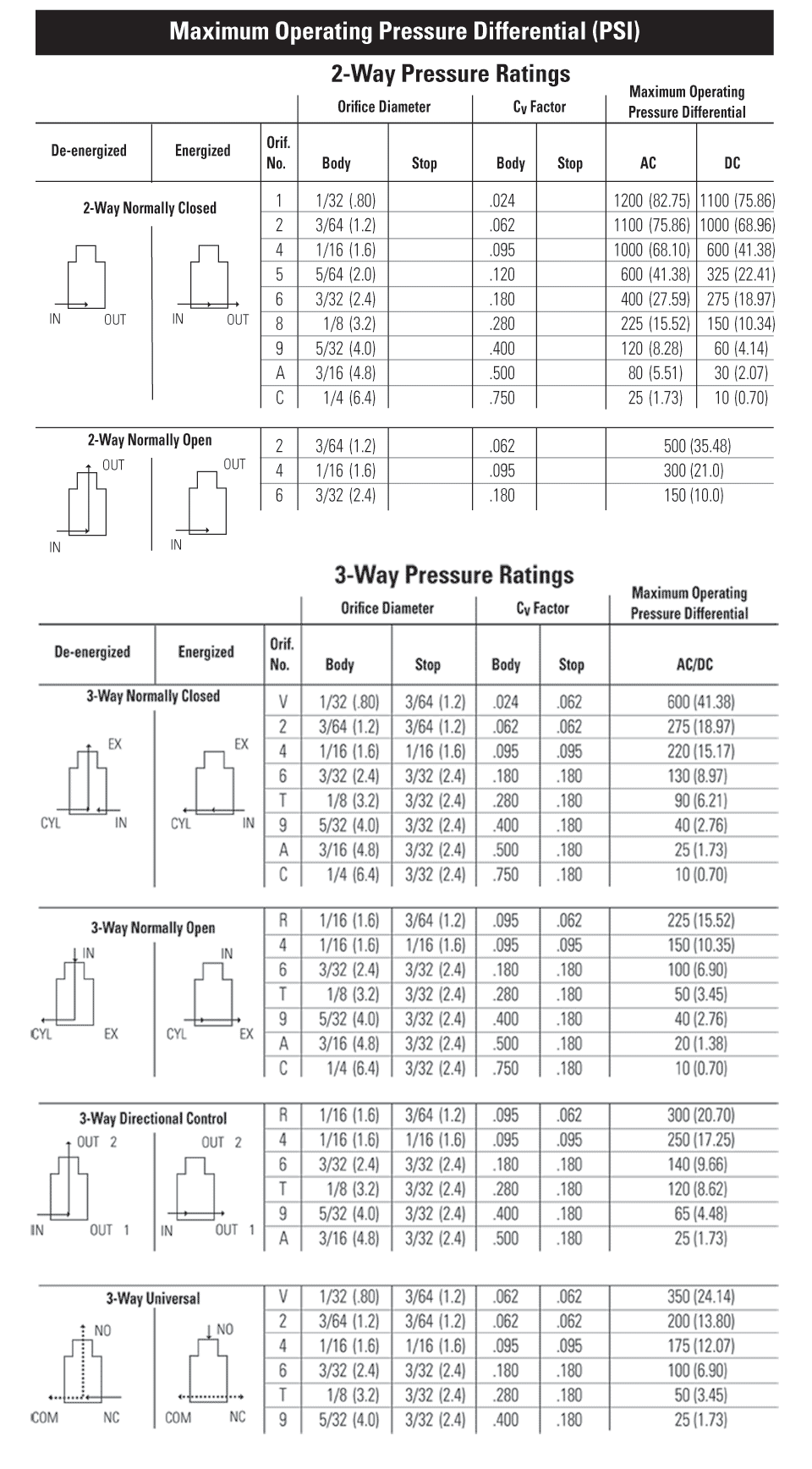

Operating Pressure
up to 1200 PSI (82.75 bar)
Power Consumption
11 Watt Continuous Duty

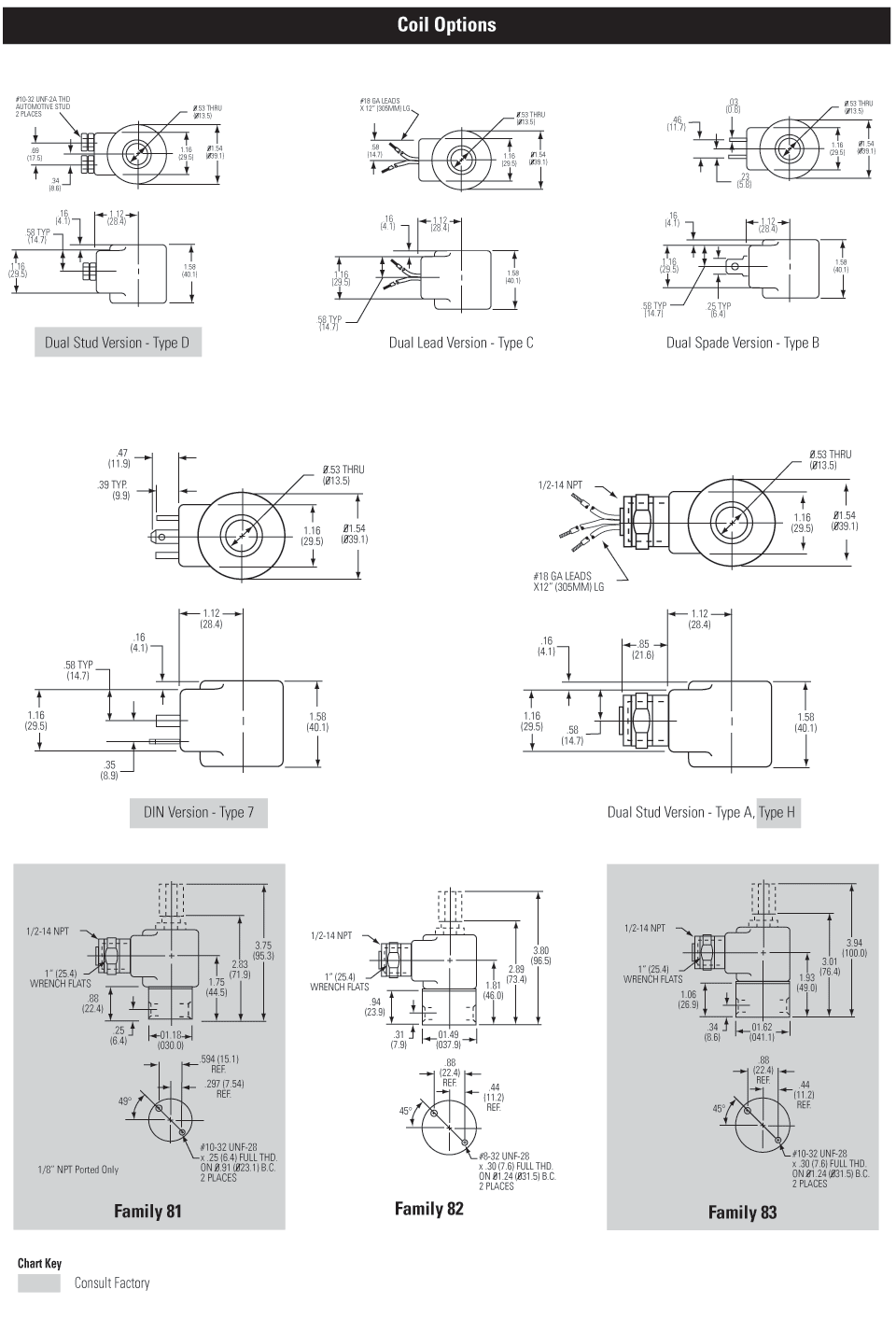

Connections
DIN, conduit, spade, and wire
Standard Voltage
24V/60 Hz, 120V/60 Hz, 240V/60 Hz, 12, 24 VDC
Standard Seal Material
Buna N (standard) and others (optional)
Body Sizes
1 3/16", 1 1/2", and 1 5/8"
Connections
spades or leads

One Piece Machined Assembly

Solenoid Valve - Series 8 - Heavy Duty

The 8 Series one-piece flange tube assembly eliminates one weld joint, increasing strength and reducing leakage potential. Its fully encapsulated overmold high-end coil construction and unique internal design provide improved magnetic circuitry for smooth operation. The rugged 8 Series direct acting solenoid valve line comes standard with a brass or stainless steel body, draws 11 watts of power and is available for AC and DC service.

Solenoid Valves - Series 8

These solenoid valves are used in automotive suspension systems, emissions monitoring and control equipment, truck fan clutch controls, dental/vision chairs, medical tables and beds, liquid recycling systems and HVAC applications.

Solenoid Solutions can also install an endless array of fittings, controls and connections to your valve, providing true "Plug and Play" solutions. We will complete the order with any add-on you need, saving you time, money, and possible costly repairs due to improperly installed fittings, etc.
