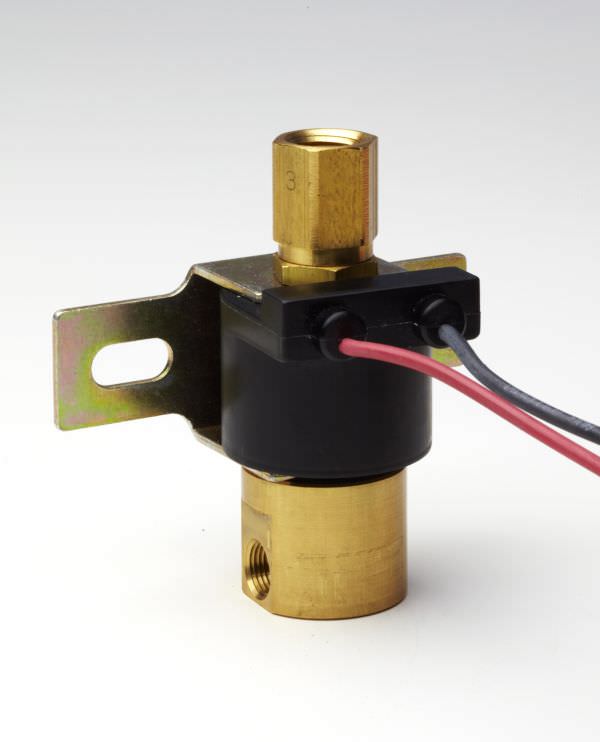

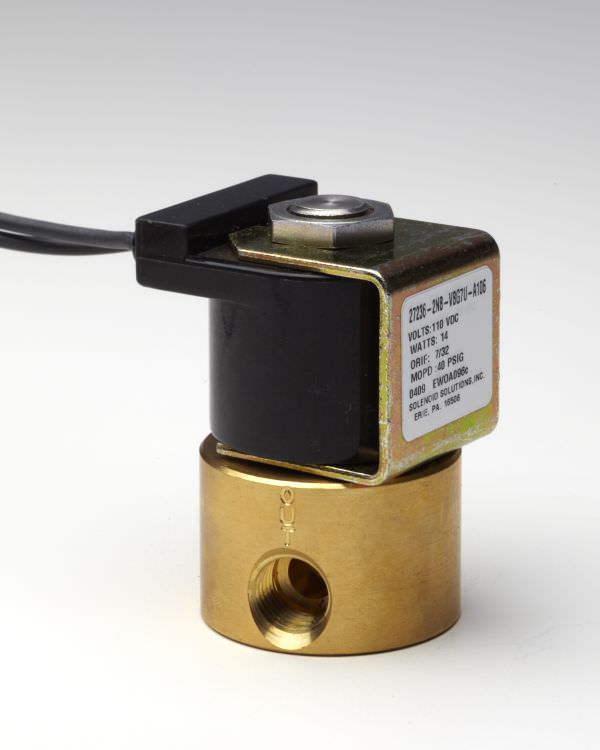

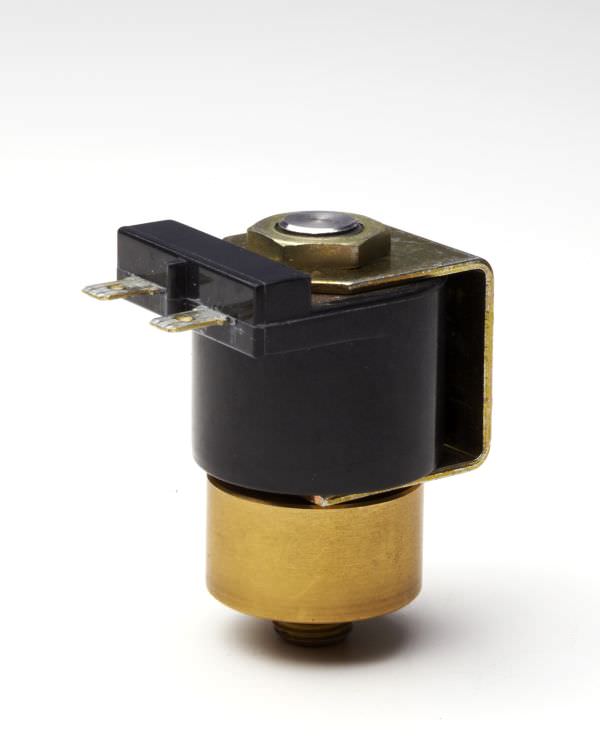

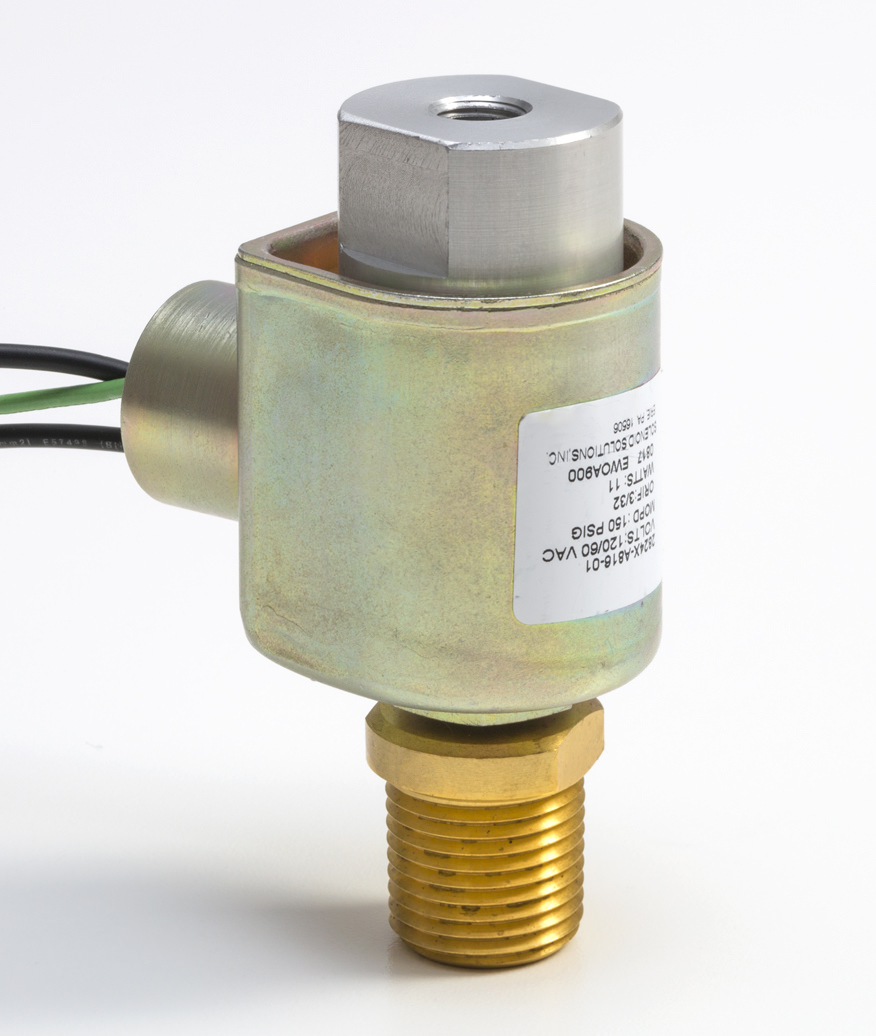

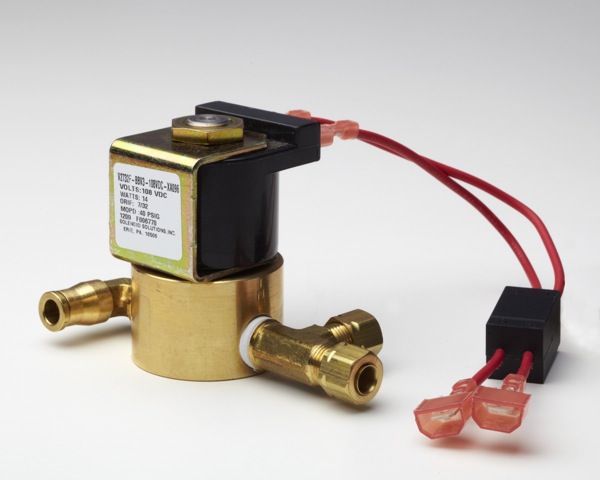

7 Series Valves
Economical High Efficiency Mid-Range Valves
New, mid-range capacity, 7 Series Solenoid Valves are designed with a powerful, but economical coil capable of handling pressures up to 250 PSI his versatile valve series with its overmold coil and construction performs well at high temperatures, is moisture resistant and can be configured in a low-profile option for difficult installations.
The high-performance, low-cost characteristics of the 7 Series makes them ideal for use by OEMs in automotive applications like suspension systems, emissions monitoring, fan clutch controls and control equipment, dental/vision or medical applications, tables and beds liquid recycling systems, HVAC and many other applications.
This direct acting solenoid valve series is available in 2-way and 3-way designs, and features 1.25" x 1.63" and manifold mount body types machined from aluminum, brass or stainless steel with 1/8" or 1/4" NPT ports and orifice sizes from 3/64" to 1/4" with a standard 11 watt coil that can operate on either AC or DC service. The 7 series is available with both spade and lead connections.
solenoid valves and piloted manifold arrangments specifically for natural and liquid propane gas applications requiring from 10,000 up to 550,000 BTUs.
Hi-Flo Gas Solenoid Valves
The 7 series of high flow, Hi-FloTM, gas solenoid valves are design for high BTU applications ideal for appliances, outdoor grills and barbecues, decorative fire bowls, propane heaters, fire pits, gas lighting, torches and more.
Body |
Anodized Aluminum (standard) Brass and Stainless Steel (optional) |
Body Sizes |
1 3/16" and 1 5/8" |
Maximum Operating Pressure Differential |
up to 250psi |
Orifice Size |
from 3/64" to 1/4" |
Response Time |
8 to 10 milliseconds |
Power Consumption |
11 watt continuous duty |
Vacuum |
Special, to 1 micron |
Port Size |
1/8" NPT, 1/4" NPT Female |
Power Electrical Connections |
spades or leads |
Seal Materials |
Buna N, Viton, EPDM standard, others optional |
Leakage |
Bubble tight |
Coil Type |
Continuous Rating, 11 watt, Class H (185°C) non-molded standard |
Standard Voltages |
24V-60 Hz, 120V-60 Hz, 240V-60 Hz, 6, 12, 24 VDC. Other voltages available on request. |
Media Temperature Limitations |
Minimum: -45°F (-45°C) Maximum: +185°F (+85°C) |
Ambient Temperature |
Standard: Max. +100°C for continuous duty Special: to +115°C |
Weight |
0.6 lbs. |
Leadwire |
18 AWG, 18 inches long standard |
Operation |
2 way and 3 way |
Wattage |
11, 12, and 14 |
Options |
Low Profile |
Features |
Operates at higher temperature, moisture resistant |
Applications |
Industrial, original equipment manufacturer, standard installations |
Overview of Solenoid valve operations

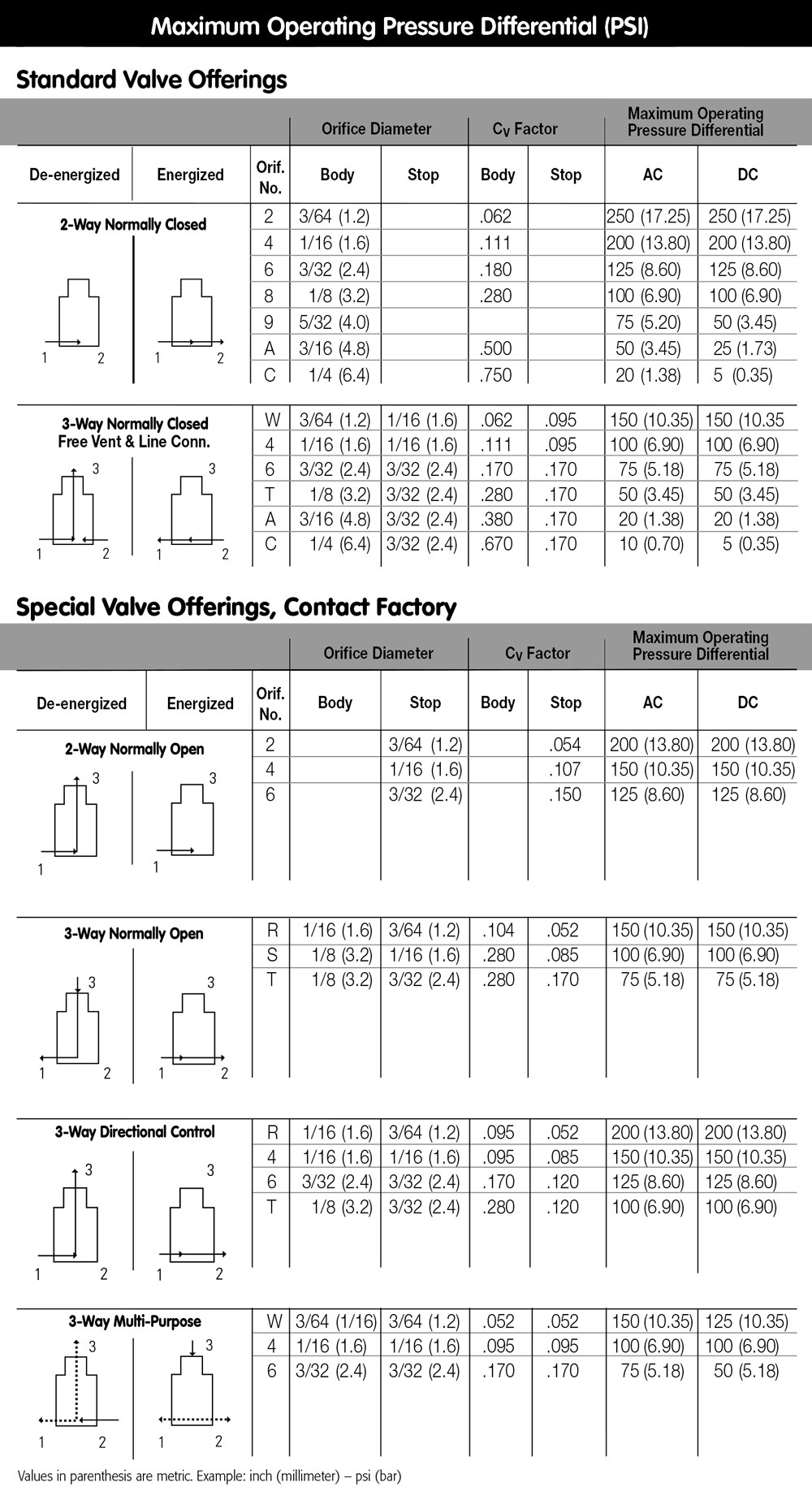

| Maximum Operating Pressure Differential (PSI) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Standard Valve Offerings | Orifice Diameter | Cv Factor | Maximum Operating Pressure Differential | |||||
| De-energized | Energized | Orif. No. | Body | Stop | Body | Stop | AC | DC |
| 2-Way Normally Closed | 2 | 3/64 (1.2) | .062 | 250 (17.25) | 250 (17.25) | |||
 |
 |
4 | 1/16 (1.6) | .111 | 200 (13.80) | 200 (13.80) | ||
| 6 | 3/32 (2.4) | .180 | 125 (8.60) | 125 (8.60) | ||||
| 8 | 1/8 (3.2) | .280 | 100 (6.90) | 100 (6.90) | ||||
| 9 | 5/32 (4.0) | .400 | 75 (5.20) | 50 (3.45) | ||||
| A | 3/16 (4.8) | .500 | 50 (3.45) | 25 (1.73) | ||||
| C | 1/4 (6.4) | .750 | 20 (1.38) | 5 (0.35) | ||||
| 3-Way Normally Closed Free Vent & Line Conn. | W | 3/64 (1.2) | 1/16 (1.6) | .062 | .095 | 150 (10.35) | 150 (10.35) | |
 |
 |
4 | 1/16 (1.6) | 1/16 (1.6) | .111 | .095 | 100 (6.90) | 100 (6.90) |
| 6 | 3/32 (2.4) | 3/32 (2.4) | .170 | .170 | 75 (5.18) | 75 (5.18) | ||
| T | 1/8 (3.2) | 3/32 (2.4) | .280 | .170 | 50 (3.45) | 50 (3.45) | ||
| A | 3/16 (4.8) | 3/32 (2.4) | .380 | .170 | 20 (1.38) | 20 (1.38) | ||
| C | 1/4 (6.4) | 3/32 (2.4) | .670 | .170 | 10 (0.70) | 5 (0.35) | ||
| Special Valve Offerings, Contact Factory | Orifice Diameter | Cv Factor | Maximum Operating Pressure Differential | |||||
|---|---|---|---|---|---|---|---|---|
| De-energized | Energized | Orif. No. | Body | Stop | Body | Stop | AC | DC |
| 2-Way Normally Open | 2 | 3/64 (1.2) | .054 | 200 (13.80) | 200 (13.80) | |||
 |
 |
4 | 1/16 (1.6) | .107 | 150 (10.35) | 150 (10.35) | ||
| 6 | 3/32 (2.4) | .150 | 125 (8.60) | 125 (8.60) | ||||
| 3-Way Normally Open | R | 1/16 (1.6) | 3/64 (1.2) | .104 | .052 | 150 (10.35) | 150 (10.35) | |
 |
 |
S | 1/8 (3.2) | 1/16 (1.6) | .280 | .085 | 100 (6.90) | 100 (6.90) |
| T | 1/8 (3.2) | 3/32 (2.4) | .280 | .170 | 75 (5.18) | 75 (5.18) | ||
| 3-Way Directional Control | R | 1/16 (1.6) | 3/64 (1.2) | .095 | .052 | 200 (13.80) | 200 (13.80) | |
 |
|
4 | 1/16 (1.6) | 1/16 (1.6) | .095 | .085 | 150 (10.35) | 150 (10.35) |
| 6 | 3/32 (2.4) | 3/32 (2.4) | .170 | .120 | 125 (8.60) | 125 (8.60) | ||
| T | 1/8 (3.2) | 3/32 (2.4) | .280 | .120 | 100 (6.90) | 100 (6.90) | ||
| 3-Way Multi-Purpose | W | 3/64 (1/16) | 3/64 (1.2) | .052 | .052 | 150 (10.35) | 125 (8.60) | |
 |
|
4 | 1/16 (1.6) | 1/16 (1.6) | .095 | .095 | 100 (6.90) | 100 (6.90) |
| 6 | 3/32 (2.4) | 3/32 (2.4) | .170 | .170 | 75 (5.18) | 50 (5.18) | ||
Values in parenthesis are metric. Example: inch (millimeter) – psi (bar)

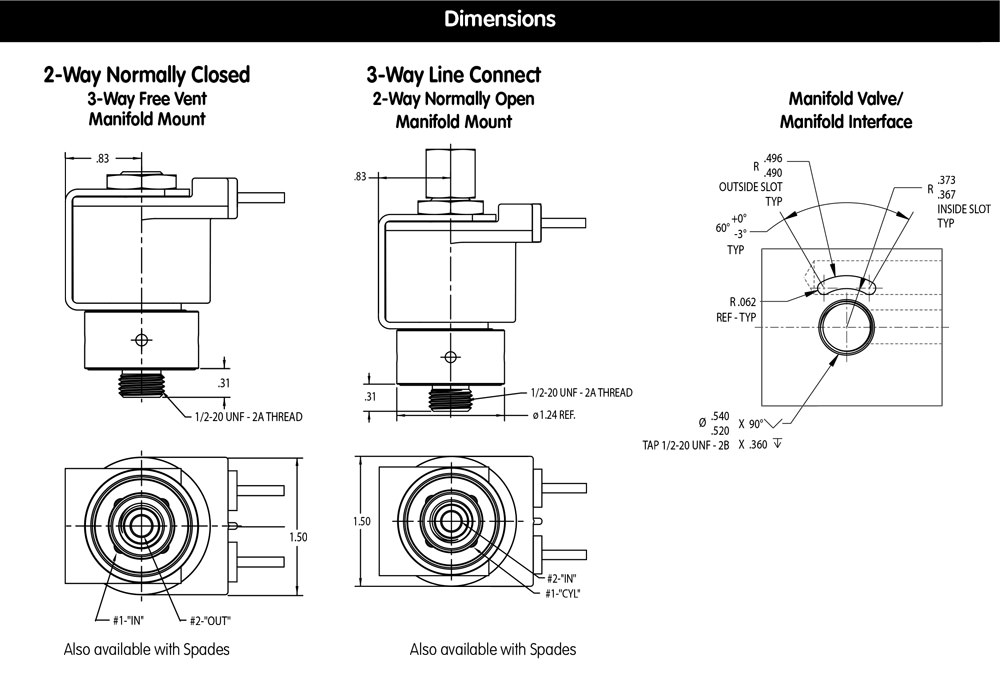

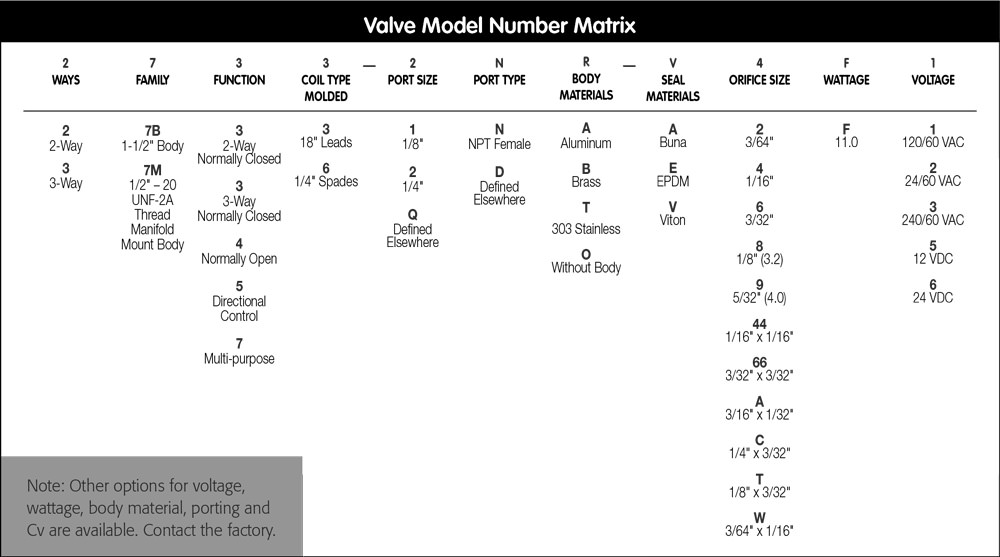

| Valve Model Number Matrix | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2 WAYS |
7 FAMILY |
3 FUNCTION |
3 COIL TYPE MOLDED |
2 PORT SIZE |
N PORT TYPE |
R BODY MATERIALS |
V SEAL MATERIALS |
4 ORIFICE SIZE |
F WATTAGE |
1 VOLTAGE |
| 2 2-Way |
7B 1-1/2" Body |
3 2-Way Normally Closed |
3 18" Leads |
1 1/8" |
N NPT Female |
A Aluminum |
A Buna |
2 3/64" |
F 11.0 |
1 120/60 VAC |
| 3 3-Way |
7M 1/2" - 20 UNF-2A Thread Manifold Mount Body |
3 3-Way Normally Closed |
6 1/4" Spades |
2 1/4" |
D Defined Elsewhere |
B Brass |
E EPDM |
4 1/16" |
2 24/60 VAC |
|
| 4 Normally Open |
Q Defined Elsewhere |
T 303 Stainless |
V Viton |
6 3/32" |
3 240/60 VAC |
|||||
| 5 Directional Control |
O Without Body |
9 1/8" (4.0) |
5 12 VDC |
|||||||
| 7 Multi-purpose |
9 5/32" (3.2) |
6 24 VDC |
||||||||
| 44 1/16" x 1/16" |
||||||||||
| 66 3/32" x 3/32" |
||||||||||
| A 3/16" x 1/132" |
||||||||||
| C 1/4" x 3/32" |
||||||||||
| T 1/8" x 3/32" |
||||||||||
| W 3/64" x 1/16" |
||||||||||
Note: Other options for voltage, wattage, body material, porting, and Cv are available. Contact Solenoid Solutions
