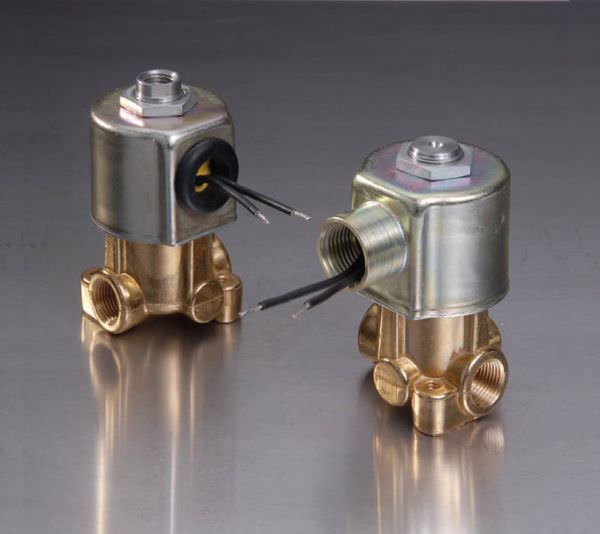

2 Series Valves
High Capacity Direct Acting ValvesThese rugged valves are the largest flow capacity, direct-acting valves we make and are available with up to 3/8" ports and 1/4" orifices. The powerful Series 2 Solenoid valve uses 17 watts of power and is designed to operate under high pressure with a high flow rate. Typical applications include use with packaging equipment, colorant mixing, blow molding, heat exchangers and industrial washing equipment. Standard voltages of the Solenoid valve include 24V, 120V, and 240V (60Hz each); 12 and 24 VDC. Other features include:
Body |
Aluminum or Brass |
Maximum Operating Pressure Differential |
up to 750 psi (51.7 bar) |
Orifice Diameters |
Body: 1/32" to 1/4" Stop: 3/64" to 3/32" |
Response Time |
20-25 milliseconds |
Power Consumption |
17 watt continuous duty |
Vacuum |
Special to 10 microns |
Port Size |
1/4" and 3/8" NPT Porting |
Housing |
Grommet, 1/2" conduit |
Seal Material |
Buna N (standard), others (optional) |
Leakage |
Bubble tight |
Coil Type |
Continuous rating |
Standard Voltages |
24V/60 Hz, 120V/60 Hz, 240V/60 Hz, 12, 14 VDC. Other voltages and watages available upon request. |
Media Temperature Limitations |
-40°F to 180°F |
Weight |
Approximately 2.5 lbs. |
Leadwire |
18 AWG, 18 (457) inches long (standard) |
Body Size |
2" |

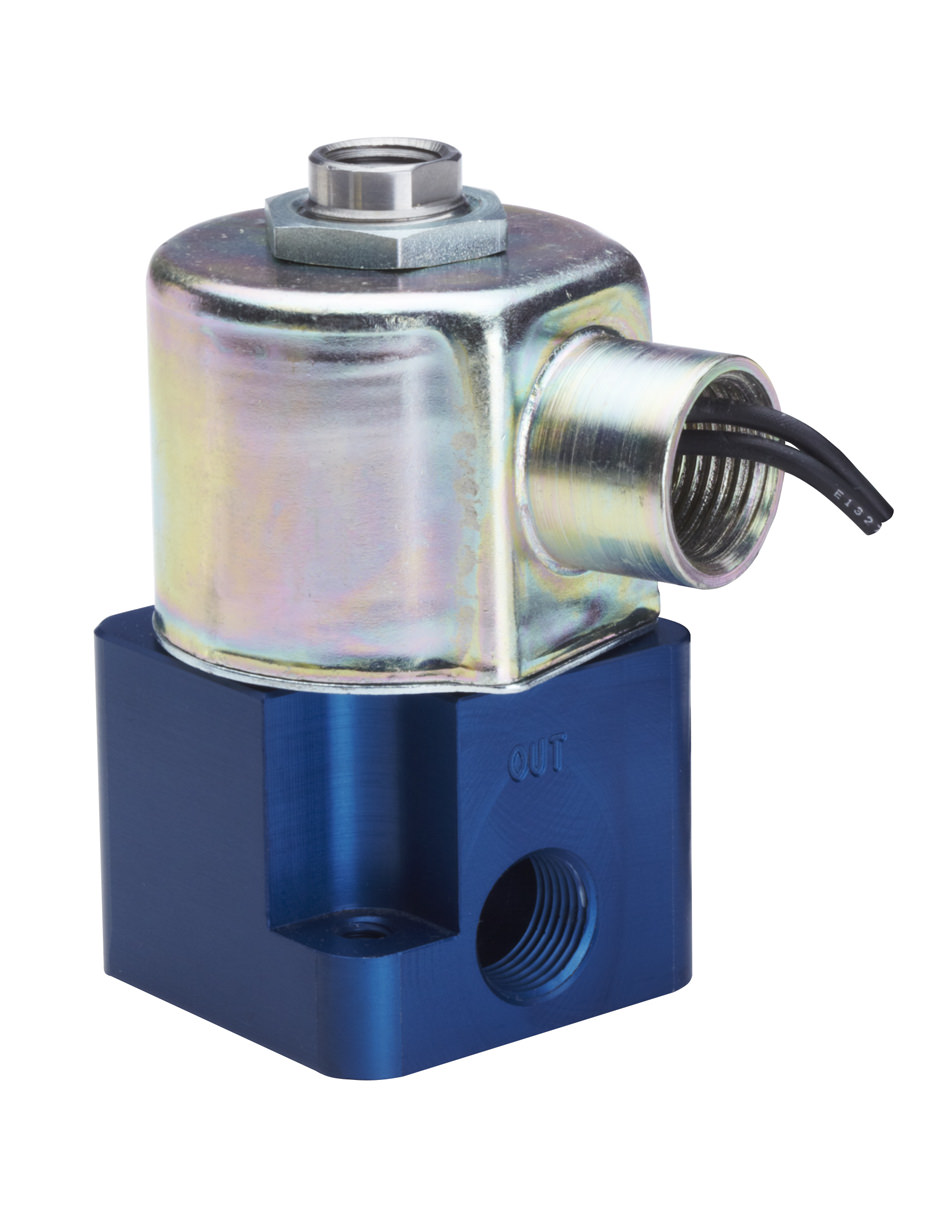

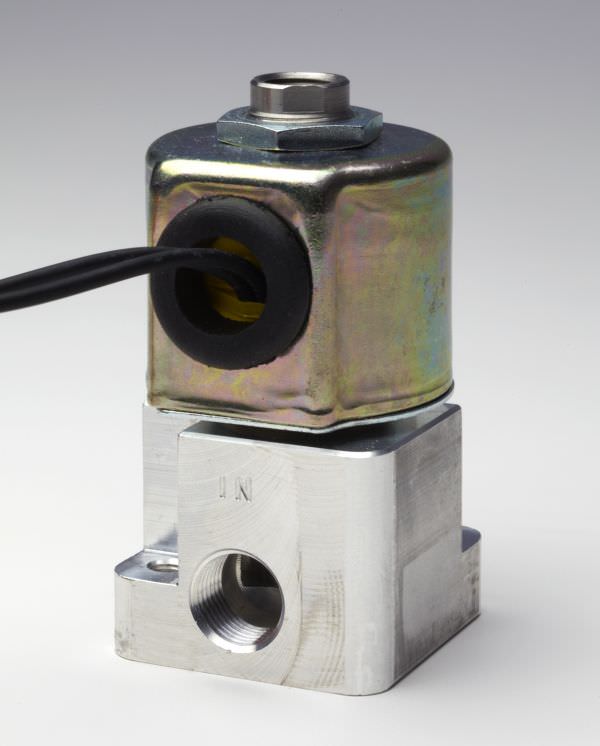

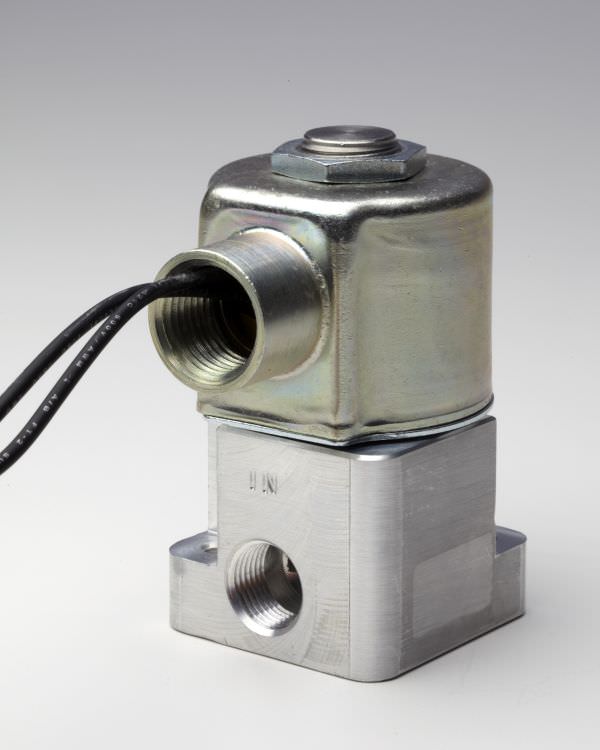

The Series 2 Solenoid valve comes standard with an aluminum body and stainless steel internal parts. It is compatible with most common media, including air, gases, hydraulic fluids and petroleum products - the large orifice works well with viscous materials. This versatile product has only two moving parts and can be serviced without pipeline removal. A molded coil is available for greater moisture resistance.
Solenoid Solutions, Inc. can also install an endless array of firings, controls and connections to your valve to give you a true "Plug and Play" solution. We'll complete the order with any add-on you need. You'll save time and money and avoid costly repairs due to improper add-on installation.
Overview of Solenoid valve operations

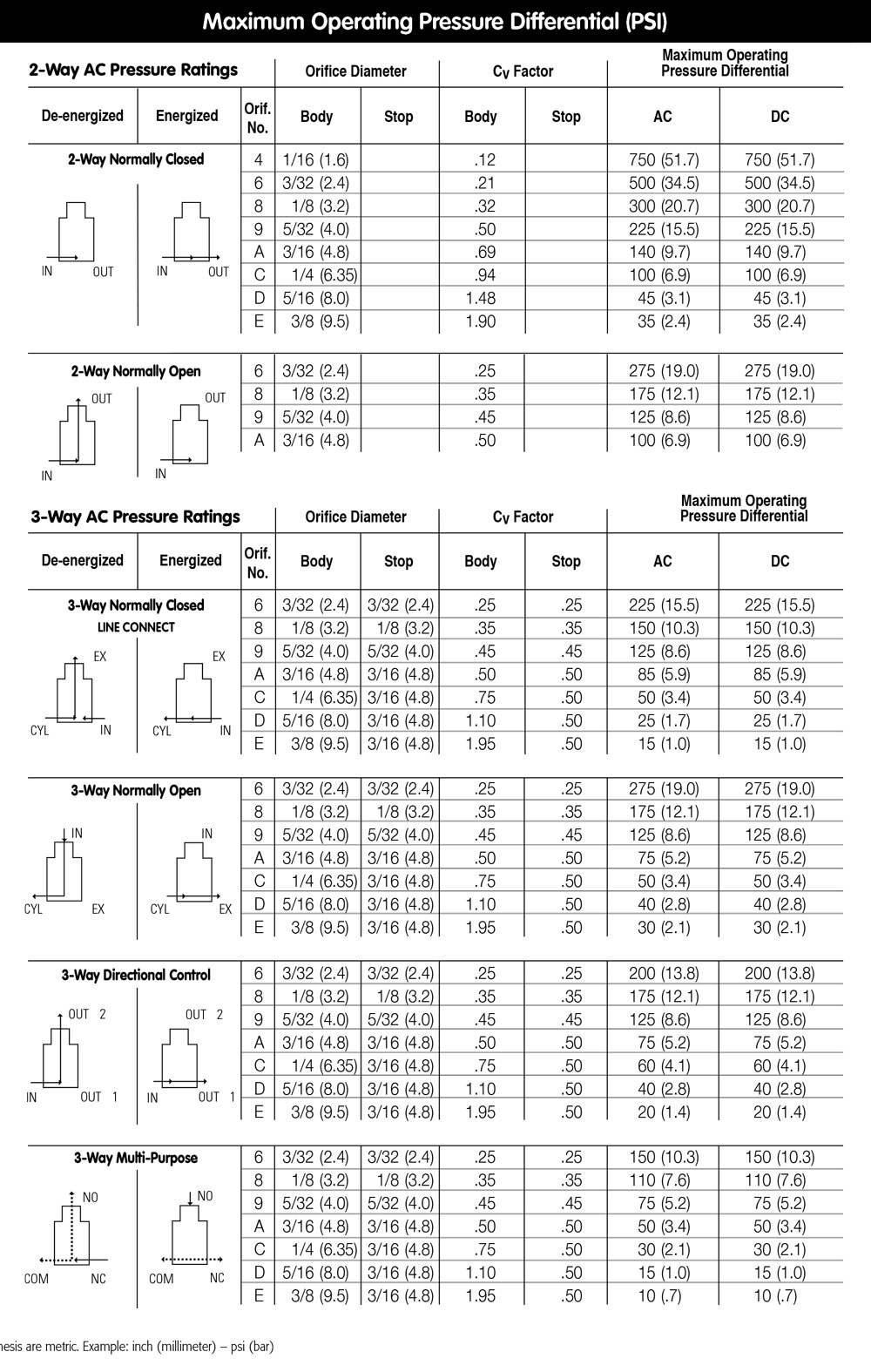

| Maximum Operating Pressure Differential (PSI) | ||||||||
|---|---|---|---|---|---|---|---|---|
| 2-Way AC Pressure Ratings | Orifice Diameter | Cv Factor | Maximum Operating Pressure Differential | |||||
| De-energized | Energized | Orif. No. | Body | Stop | Body | Stop | AC | DC |
| 2-Way Normally Closed | 4 | 1/16 (1.6) | .12 | 750 (51.7) | 750 (51.7) | |||
 |
 |
6 | 3/32 (2.4) | .21 | 500 (34.5) | 500 (34.5) | ||
| 8 | 1/8 (3.2) | .32 | 300 (20.7) | 300 (20.7) | ||||
| 9 | 5/32 (4.0) | .50 | 225 (15.5) | 225 (15.5) | ||||
| A | 3/16 (4.8) | .69 | 140 (9.7) | 140 (9.7) | ||||
| C | 1/4 (6.35) | .94 | 100 (6.9) | 100 (6.9) | ||||
| D | 5/16 (8.0) | 1.48 | 45 (3.1) | 45 (3.1) | ||||
| E | 3/8 (9.5) | 1.90 | 35 (2.4) | 35 (2.4) | ||||
| 2-Way Normally Open | 6 | 3/32 (2.4) | .25 | 275 (19.0) | 275 (19.0) | |||
 |
 |
8 | 1/8 (3.2) | .35 | 175 (12.1) | 175 (12.1) | ||
| 9 | 5/32 (4.0) | .45 | 125 (8.6) | 125 (8.6) | ||||
| A | 3/16 (4.8) | .50 | 100 (6.9) | 100 (6.9) | ||||
| 3-Way AC Pressure Ratings | Orifice Diameter | Cv Factor | Maximum Operating Pressure Differential | |||||
|---|---|---|---|---|---|---|---|---|
| De-energized | Energized | Orif. No. | Body | Stop | Body | Stop | AC | DC |
| 3-Way Normally Closed LINE CONNECT |
6 | 3/32 (2.4) | 3/32 (2.4) | .25 | .25 | 225 (15.5) | 225 (15.5) | |
 |
 |
8 | 1/8 (3.2) | 1/8 (3.2) | .35 | .35 | 150 (10.3) | 150 (10.3) |
| 9 | 5/32 (4.0) | 5/32 (4.0) | .45 | .45 | 125 (8.6) | 125 (8.6) | ||
| A | 3/16 (4.8) | 3/16 (4.8) | .50 | .50 | 85 (5.9) | 85 (5.9) | ||
| C | 1/4 (6.35) | 1/4 (6.35) | .75 | .75 | 50 (3.4) | 50 (3.4) | ||
| D | 5/16 (8.0) | 5/16 (8.0) | 1.10 | .50 | 25 (1.7) | 25 (1.7) | ||
| E | 3/8 (9.5) | 3/8 (9.5) | 1.95 | .50 | 15 (1.0) | 15 (1.0) | ||
| 3-Way Normally Open | 6 | 3/32 (2.4) | 3/32 (2.4) | .25 | .25 | 275 (19.0) | 275 (19.0) | |
 |
 |
8 | 1/8 (3.2) | 1/8 (3.2) | .35 | .35 | 175 (12.1) | 175 (12.1) |
| 9 | 5/32 (4.0) | 5/32 (4.0) | .45 | .45 | 125 (8.6) | 125 (8.6) | ||
| A | 3/16 (4.8) | 3/16 (4.8) | .50 | .50 | 75 (5.2) | 75 (5.2) | ||
| C | 1/4 (6.35) | 1/4 (6.35) | .75 | .75 | 50 (3.4) | 50 (3.4) | ||
| D | 5/16 (8.0) | 5/16 (8.0) | 1.10 | .50 | 40 (2.8) | 40 (2.8) | ||
| E | 3/8 (9.5) | 3/8 (9.5) | 1.95 | .50 | 30 (2.1) | 30 (2.1) | ||
| 3-Way Directional Control | 6 | 3/32 (2.4) | 3/32 (2.4) | .25 | .25 | 200 (13.8) | 200 (13.8) | |
 |
 |
8 | 1/8 (3.2) | 1/8 (3.2) | .35 | .35 | 175 (12.1) | 175 (12.1) |
| 9 | 5/32 (4.0) | 5/32 (4.0) | .45 | .45 | 125 (8.6) | 125 (8.6) | ||
| A | 3/16 (4.8) | 3/16 (4.8) | .50 | .50 | 75 (5.2) | 75 (5.2) | ||
| C | 1/4 (6.35) | 3/16 (4.8) | .75 | .50 | 60 (4.1) | 60 (4.1) | ||
| D | 5/16 (8.0) | 3/16 (8.0) | 1.10 | .50 | 40 (2.8) | 40 (2.8) | ||
| E | 3/8 (9.5) | 3/16 (4.8) | 1.95 | .50 | 20 (1.4) | 20 (1.4) | ||
| 3-Way Multi-Purpose | 6 | 3/32 (2.4) | 3/32 (2.4) | .25 | .25 | 150 (10.3) | 150 (10.3) | |
 |
 |
8 | 1/8 (3.2) | 1/8 (3.2) | .35 | .35 | 110 (7.6) | 110 (7.6) |
| 9 | 5/32 (4.0) | 5/32 (4.0) | .45 | .45 | 75 (5.2) | 75 (5.2) | ||
| A | 3/16 (4.8) | 3/16 (4.8) | .50 | .50 | 50 (3.4) | 50 (3.4) | ||
| C | 1/4 (6.35) | 3/16 (4.8) | .75 | .50 | 30 (2.1) | 0 (2.1) | ||
| D | 5/16 (8.0) | 3/16 (4.8) | 1.10 | .50 | 15 (1.0) | 15 (1.0) | ||
| E | 3/8 (9.5) | 3/16 (4.8) | 1.95 | .50 | 10 (0.7) | 10 (0.7) | ||
Values in parenthesis are metric. Example: inch (millimeter) – psi (bar)

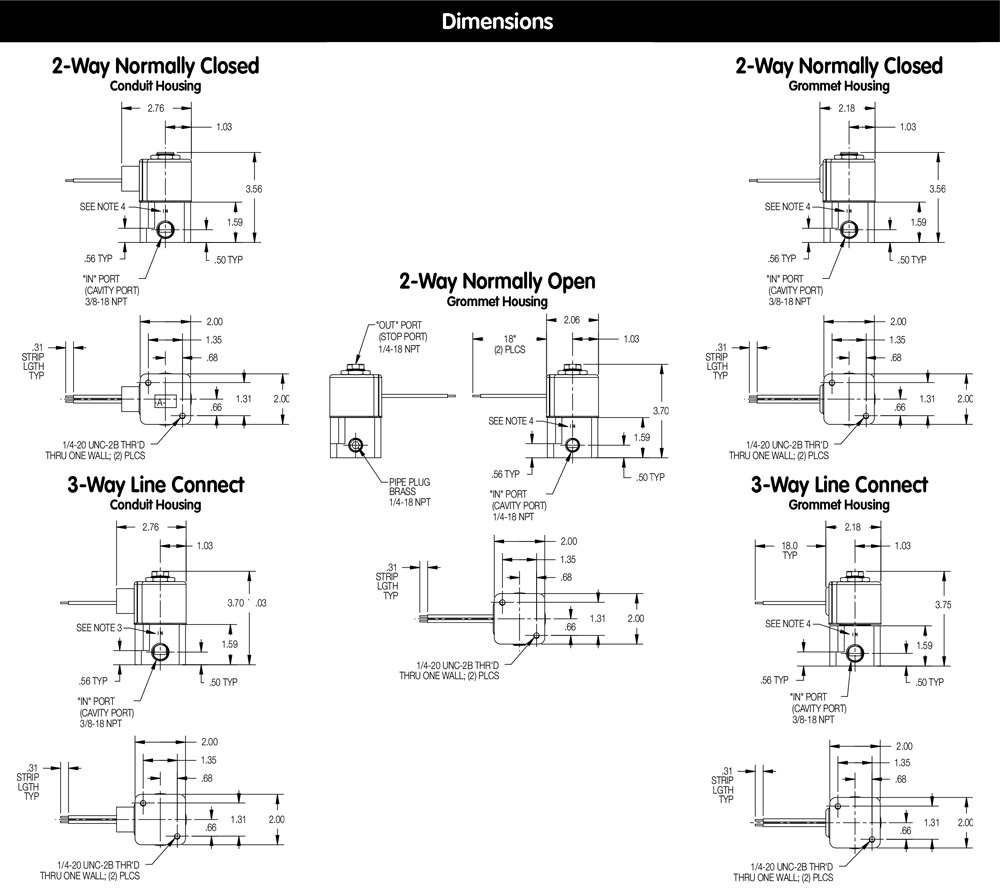

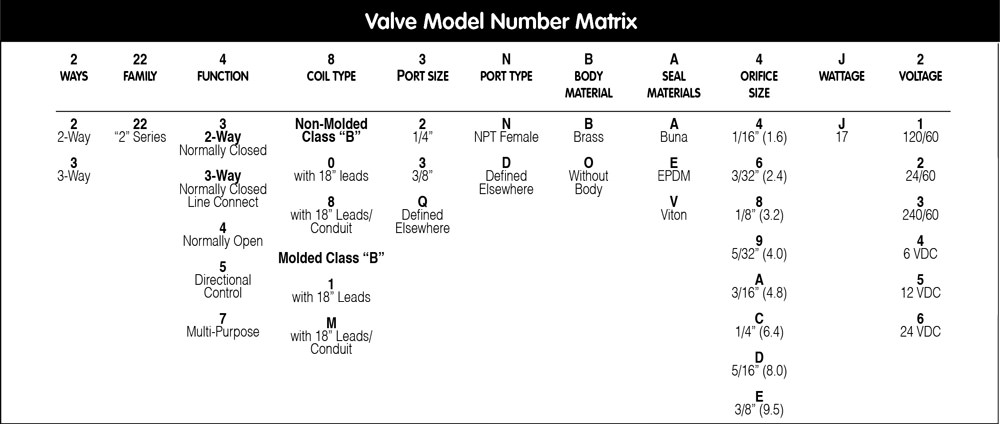

| Valve Model Number Matrix | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2 WAYS |
22 FAMILY |
4 FUNCTION |
8 COIL TYPE |
3 PORT SIZE |
N PORT TYPE |
B BODY MATERIAL |
A SEAL MATERIALS |
4 ORIFICE SIZE |
J WATTAGE |
2 VOLTAGE |
| 2 2-Way |
22 '2' Series |
3 2-Way Normally Closed |
Non-Molded Class 'B' | 2 1/4" |
N NPT Female |
B Brass |
A Buna |
4 1/16" (1.6) |
J 17 |
1 120/60 |
| 3 3-Way |
3-Way Normally Closed Line Connect | 0 with 18" leads |
3 3/8" |
D Defined Elsewhere |
O Without Body |
E EPDM |
6 3/32" (2.4) |
2 24/60 |
||
| 4 Normally Open |
8 with 18" Leads/Conduit |
Q Defined Elsewhere |
V Viton |
8 1/8" (3.2) |
3 240/60 |
|||||
| 5 Directional Control |
Molded Class 'B' | 9 5/32" (4.0) |
4 6 VDC |
|||||||
| 7 Multi-Purpose
|
1 with 18" Leads |
A 3/16" (4.8) |
5 12 VDC |
|||||||
| M with 18" Leads/Conduit |
C 1/4" (6.4) |
6 24 VDC |
||||||||
| D 5/16" (8.0) |
||||||||||
| E 3/8" (9.5) |
||||||||||
