2 Series Solenoid Valves

See more photos in the gallery

Largest High Capacity Direct Acting Valves

These rugged valves are the largest flow capacity, direct acting valves we make and are available with up to 3/8” ports and 1/4” orifices. Series 2 solenoid valves feature a very powerful valve that uses 17 watts of power. These valves are designed to operate under high pressure with a high flow rate. Typical applications include use with packaging equipment, colorant mixing, blow molding, heat exchangers and industrial washing equipment.

1/4" and 3/8” NPT Porting
Aluminum Body
Orifice Diameters: 1/32" to 1/4" Stop-3/64" to 3/32"
Weight approximately 2.5 lbs.
Media temperature limitations of -40°F to 180°F
Coil type is continuous rating
2-way and 3-way operation
Operating pressure up to 1200 PSI
Power consumption of 17 watt continuous duty
Standard voltages: 24V/60 Hz, 120V/60 Hz, 240V/60 Hz, 12, 24 VDC
Response time is 20 to 25 milliseconds
Standard seal material is Buna N with others optional
Leakage is bubble tight
Vacuum is special to 10 microns
Body size: 2"

The 2 Series Solenoid Valve comes standard with an aluminum body and stainless steel internal parts. It is compatible with most common media, including air, gases, hydraulic fluids and petroleum products - the large orifice works well with viscous materials. The 2 Series solenoid valves have only two moving parts and can be serviced without pipe-line removal. A molded coil is available for greater moisture resistance.

Solenoid Solutions, Inc. can also install an endless array of firings, controls and connections to your valve to give you a true “Plug and Play” solution. We complete the order with any add-on you need, and you save time, money, and costly repairs due to improper add-on installation.

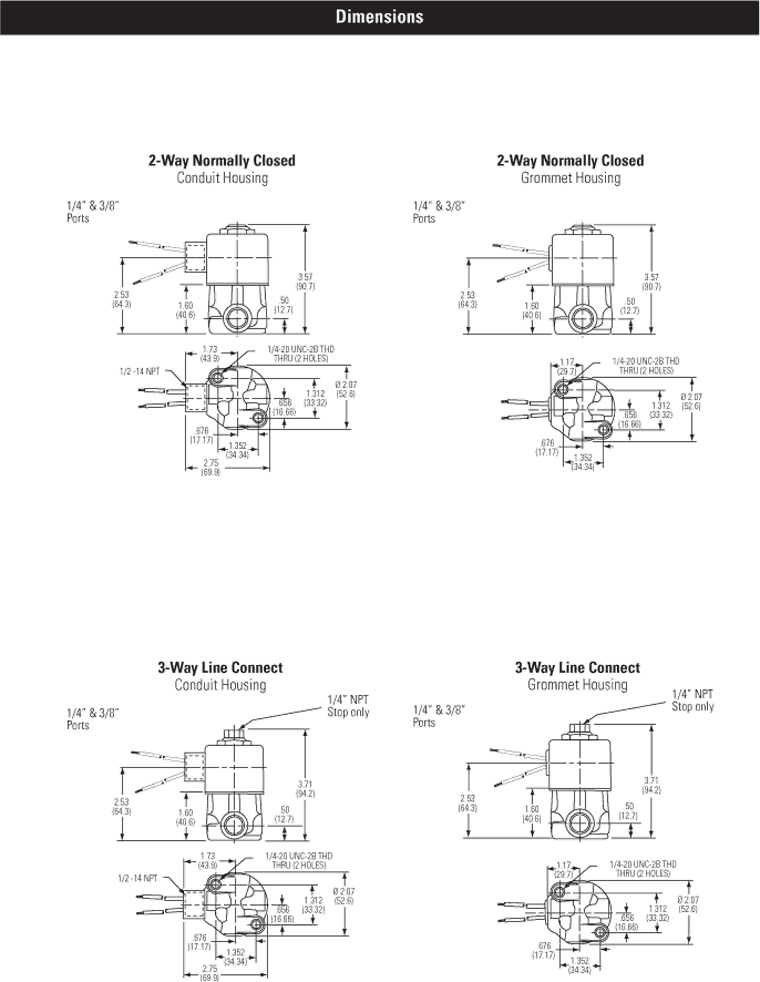

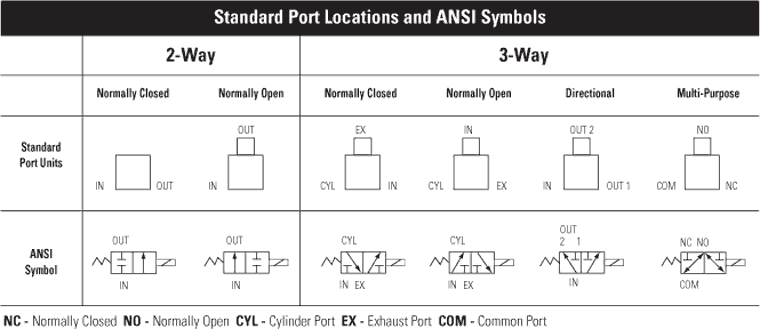

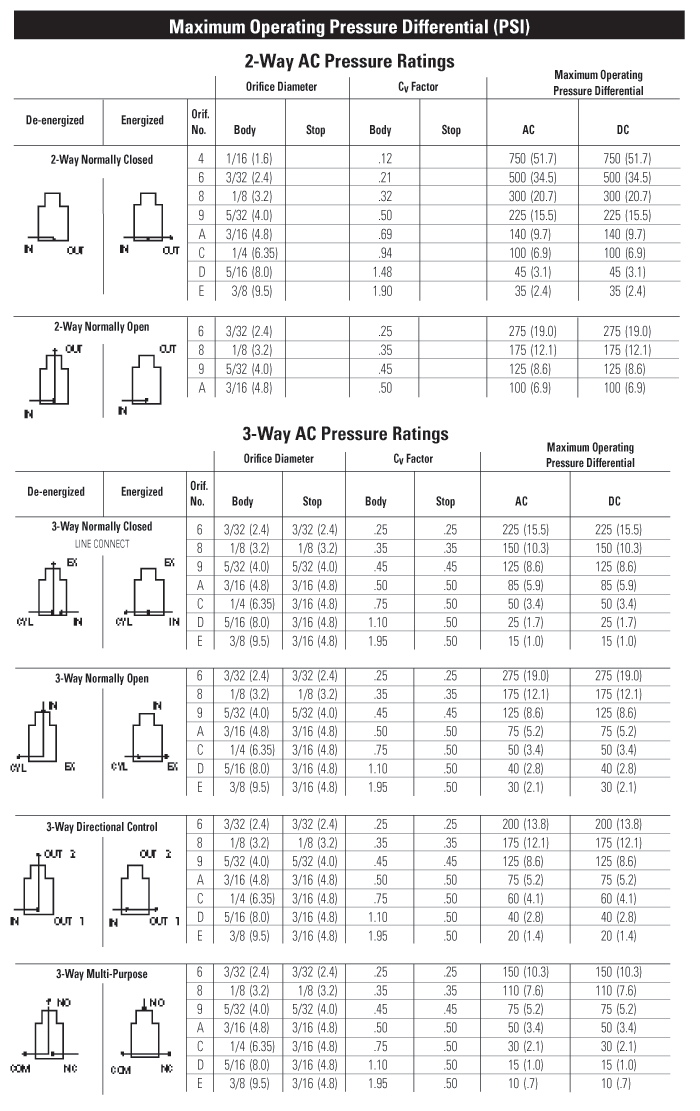

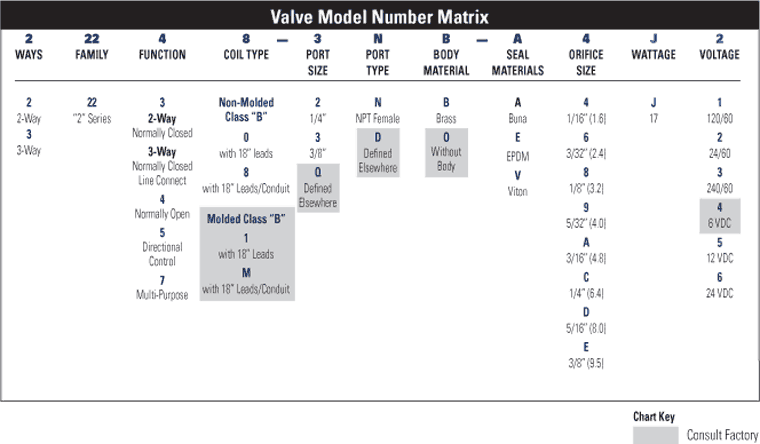

The following charts will aid in the proper valve specification selection. Click on the chart you need for a larger version.
