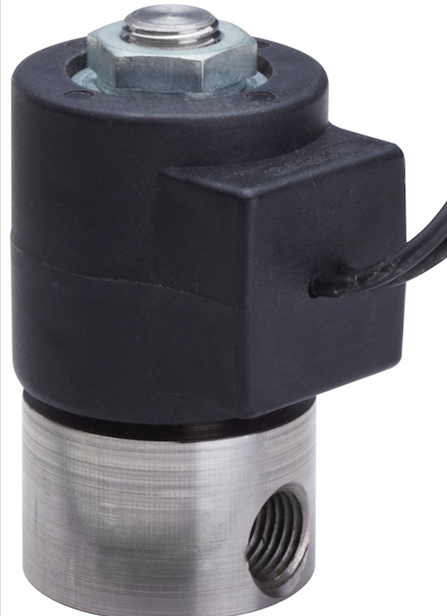

Solenoid Valve - SuperWattmizer

Looking for a big solution in a small package? Our SuperWattmizer solenoid valve delivers! With a #10-32 port size of just 1/4" NPT, it features a larger orifice range, from .025" up to .219". It's the ultimate small-space solution.

Count on continuous operation from your SuperWattmizer Solenoid valve. Thanks to its high rating, you can expect up to 60 million or more cycles of performance. It also boasts a rapid response time of 6 to 9 milliseconds.

See the latest news release on miniature solenoid valves.

The Super Wattmizer Solenoid Valve is very powerful and compact, operating at up to 35% higher capacity at very low wattage. Now you can draw less current thanks to larger coils that range from 0.65 to 9 watts.These valves also operate better in higher temperature situations due to a better heat-dispersing coil.

Maximum Operating Pressure Differential
 up to 1500psi (85 bar)
Orifice Diameters
 .025" to 1/8" (body) .025" to 5/64" (stop)
Response Time
 6 to 10 milliseconds
Power Consumption
 0.65 to 9 watt continuous duty
Vacuum
 5 microns
Port Size
 #10-32 UNF-2B, 1/8" NPT and 1/4" NPT
Housing
 Strap housing (standard)
Seal Material
 Buna N, Viton, EPDM standard, others optional
Leakage
 Bubble tight (1 x 10-5 cc/sec.)
Coil Type
 Continuous Rating - Head dispersing
0.65 watt through 9 watt-Class "F" (155°C) standard
0.65 watt through 9 watt-Class "B" (130°C) optional
Standard Voltages
 24V/50-60 Hz, 120V/50-60 Hz, 240V/60 Hz, 6, 12, 24 VDC
(Other voltages and wattages available upon request)
Media Temperature Limitations
 Minimum: -40°F (-40°C)
Maximum: +180°F (+82°C)
Weight
 2-3/4 to 3-1/4 ounces
Leadwire
 20 AWG, 18 inches or spades

Unsure what type of solenoid valve you need? Contact us or call (888) 825-8405. Our expert team can help configure the best solution. Be sure to ask for your free quote!.

Downloads

Valves and Manifolds Catalog

Valves and Manifolds Catalog

Provides a complete guide to all of Solenoid Solutions' products and services.

Read More
Super Wattmizer Series

Super Wattmizer Series

Provides information about Solenoid Solutions' Wattmizer Series solenoid valves.

Read More

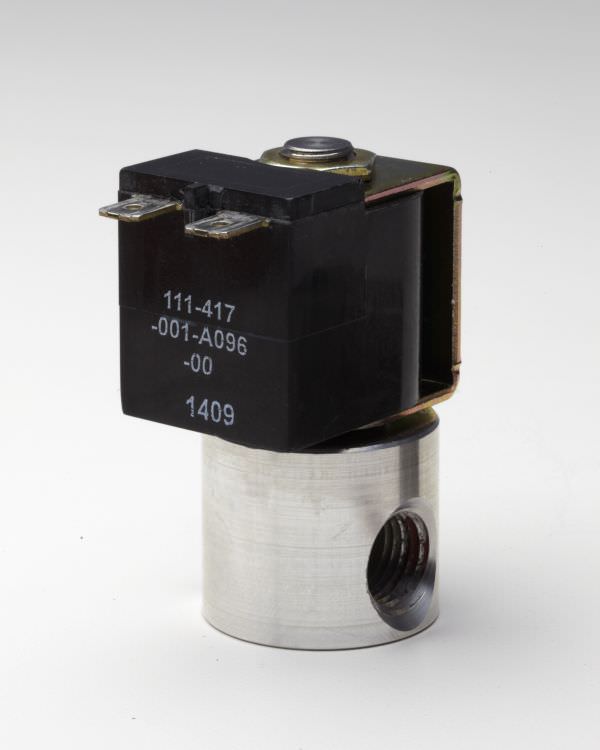

Super Wattmizer 024 a sub mini solenoid valve with a stainless steel body
